PX43 BIO
PX43 BIO
PX43 BIO
PX43 BIO

PX43 BIO

$5,788

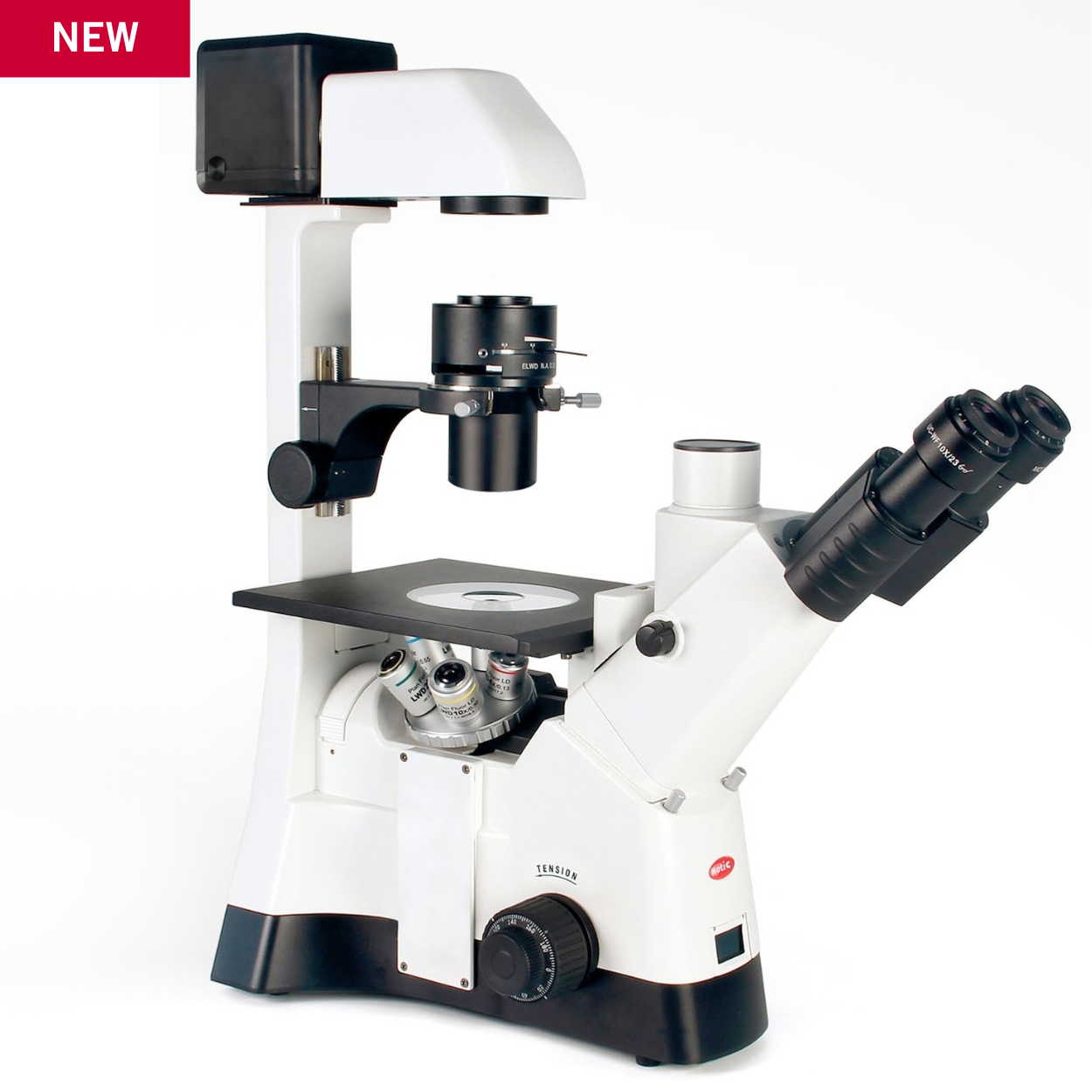

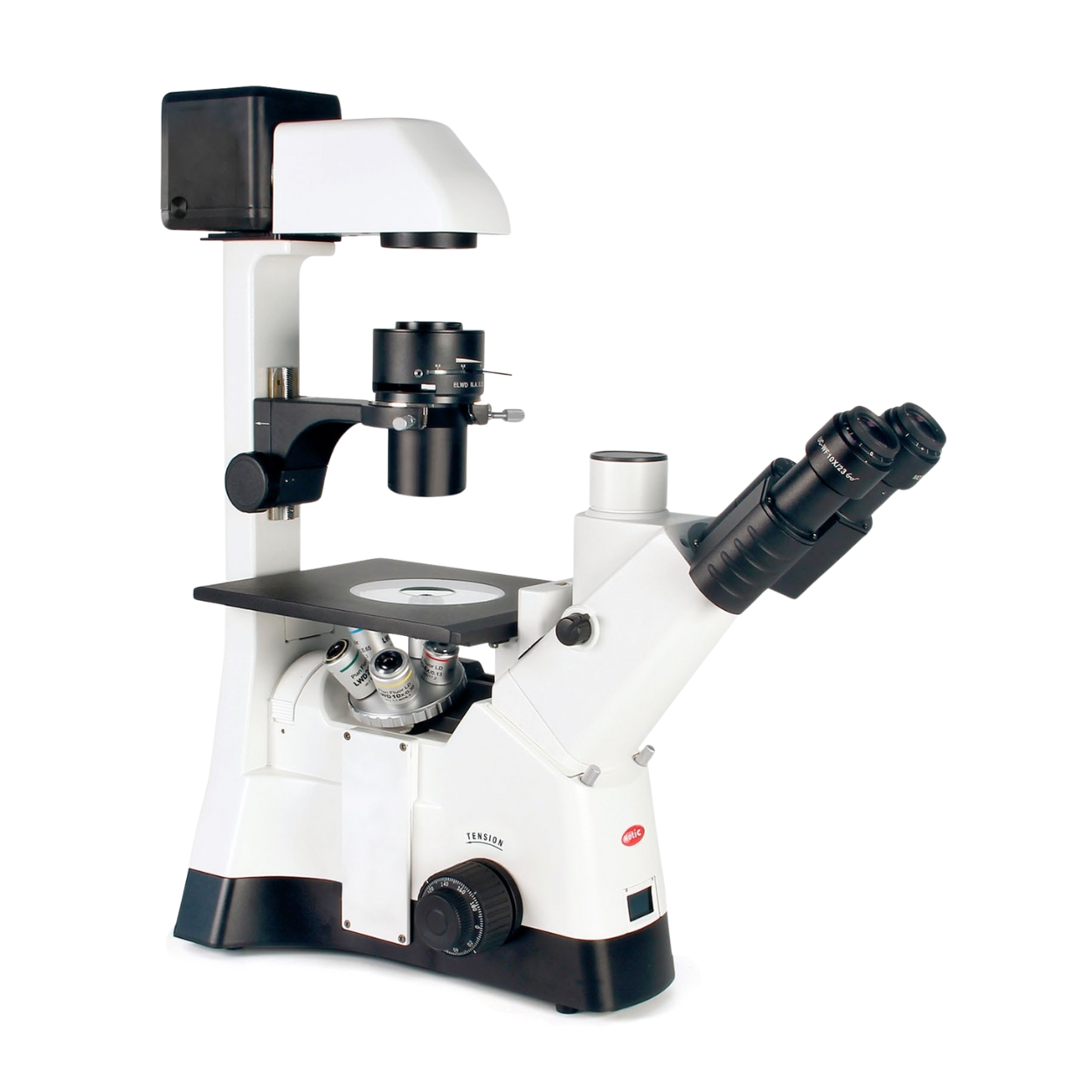

The PX43 BIO is an intelligent inverted microscope optimized for brightfield and phase contrast. With a long working distance, ergonomic design, and seamless software integration, it’s ideal for routine live-cell imaging, delivering high-quality images and enhanced workflow efficiency through automated objective recognition and real-time status display.

Request a Quote

PX43 BIO: Upgraded with New and Improved Objectives - New LWD UC Plan with brightfield and Phase Contrast options

  • Ergonomic Observation Tubes
    The observation tube can be rotated 360° freely and provides users with a comfortable observation angle. You can maintain a comfortable posture for operation and reduce fatigue for long-time work.

  • Large Working Distance
    The large working distance of 72mm provides sufficient space for placing various cell culture containers.

  • Flexible Selection of Transmitted Light Source
    You can choose 50W halogen lamp or 10W LED for transmitted light source. Both of them can reach the optimal state. The field of view is bright and uniform, and the user can easily change the lighting source according to the actual use requirements.

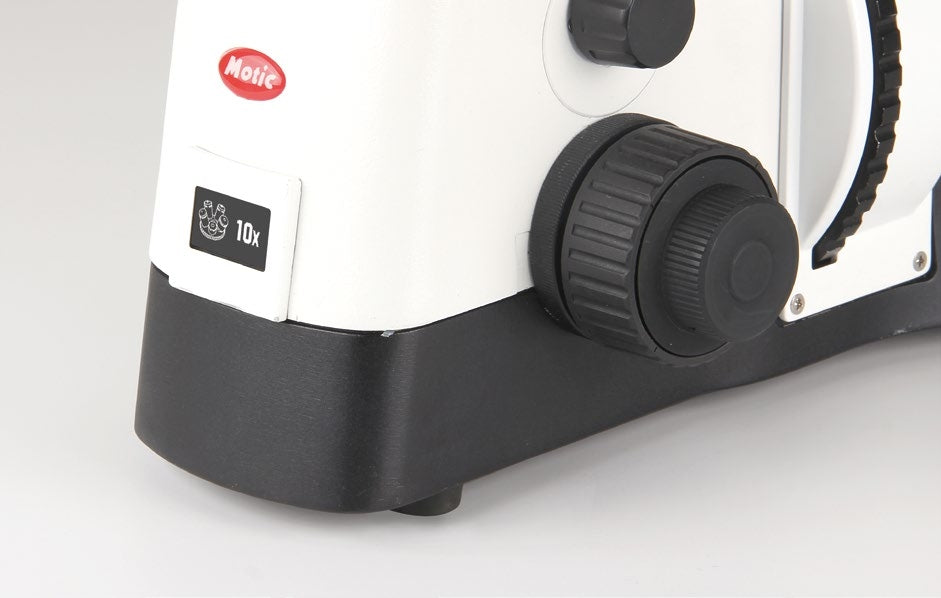

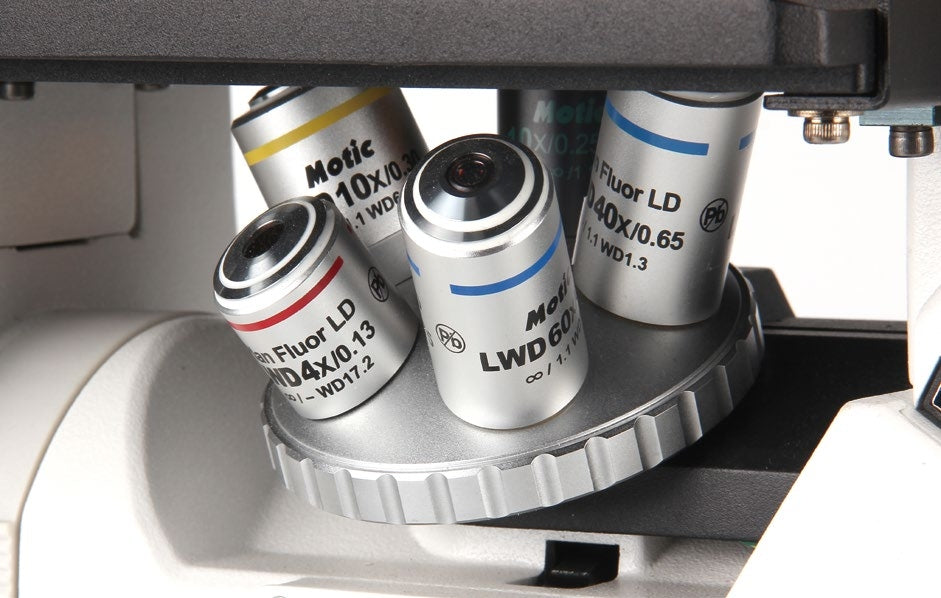

  • Coded Objective Turret
    It comes standard with a 5-hole coded objective turret, which supports up to 5 objectives with different magnifications. While acquiring rich sample information, the software can automatically identify objective changes, and after switching objectives, the software can display the current objective magnification, and the pictures can be traced back to the magnification information, which can improve your work efficiency.

Model PX43 BIO Inverted Microscope PX43 FS6 Inverted Microscope
Optical System CCIS Infinitely Corrected Optical System
Observations BF, PH BF, PH, FL
Transmitted Light Illuminator 10W LED
50W halogen illuminator
Fluorescence Light Source / 100W mercury lamps
Metal halide fluorescent lamps LUMOS X
LED fluorescent lamp LUMOS3
Observation Tube 45° inclined trinocular tube with 360° rotatable tube
(Optional light split ratio 100:0, 20:80 / 100:0, 0:100)
Eyepieces FN22, 10x/22mm
FN23, 10x/23mm
FN16, 15x/16mm
Nosepieces Coded Quintuple (5) Revolving Nosepiece
Objectives  Plan Achromat 4x PH0 N.A. 0.10, W.D. 12.6 mm
Plan Achromat 10x PH1 N.A. 0.25, W.D. 4.1 mm
LD Plan Achromat 20x PH1 N.A. 0.30, W.D. 4.7 mm
LD Plan Achromat 40x PH1 N.A. 0.50, W.D. 3.0 mm
LD Plan Achromat 40x PH2 N.A. 0.50, W.D. 3.0 mm
Plan Flour 4x N.A. 0.13, W.D. 17.2 mm
Plan Flour 10x N.A. 0.3, W.D. 11.2 mm
LD Plan Flour 20x N.A. 0.45, W.D. 5.0 mm
LD Plan Flour 40x N.A. 0.65, W.D. 1.3 mm
LD Plan Flour 60x N.A. 0.75, W.D. 1.0 mm
/ Plan Flour LWD 10x PH1 N.A. 0.30, W.D. 11.2 mm
Plan Flour LWD 20x PH1 N.A. 0.45, W.D. 5.0 mm
Plan Flour LWD 40x PH1 N.A. 0.65, W.D. 1.3 mm
Stage 200mm x 239mm fixed stage with hard coated surface, which can resistant to scratching, scuffing and corrosion
Optional mechanical carrier can be fitted with various sample cups
Condensers Long working distance condenser N.A. 0.3, W.D. 72mm
Long working distance condenser N.A. 0.5, W.D. 28mm
Focus Stroke per revolution: 42mm/ coarse adjustable, 0.2mm/ fine adjustable; minimum increment: 0.002mm
Fluorescence Filter Sets / AT-DAPI/Hoechst/AlexaFluor 350
AT-EGFP/FITC/Cy2/AlexaFluor 488
AT-TRITC/Cy3/TagRFP/AlexaFluor 546
(and other customised Fluorescence Filter Sets)
Software Professional image processing software: Motic Analysis Bio

At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.

All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
