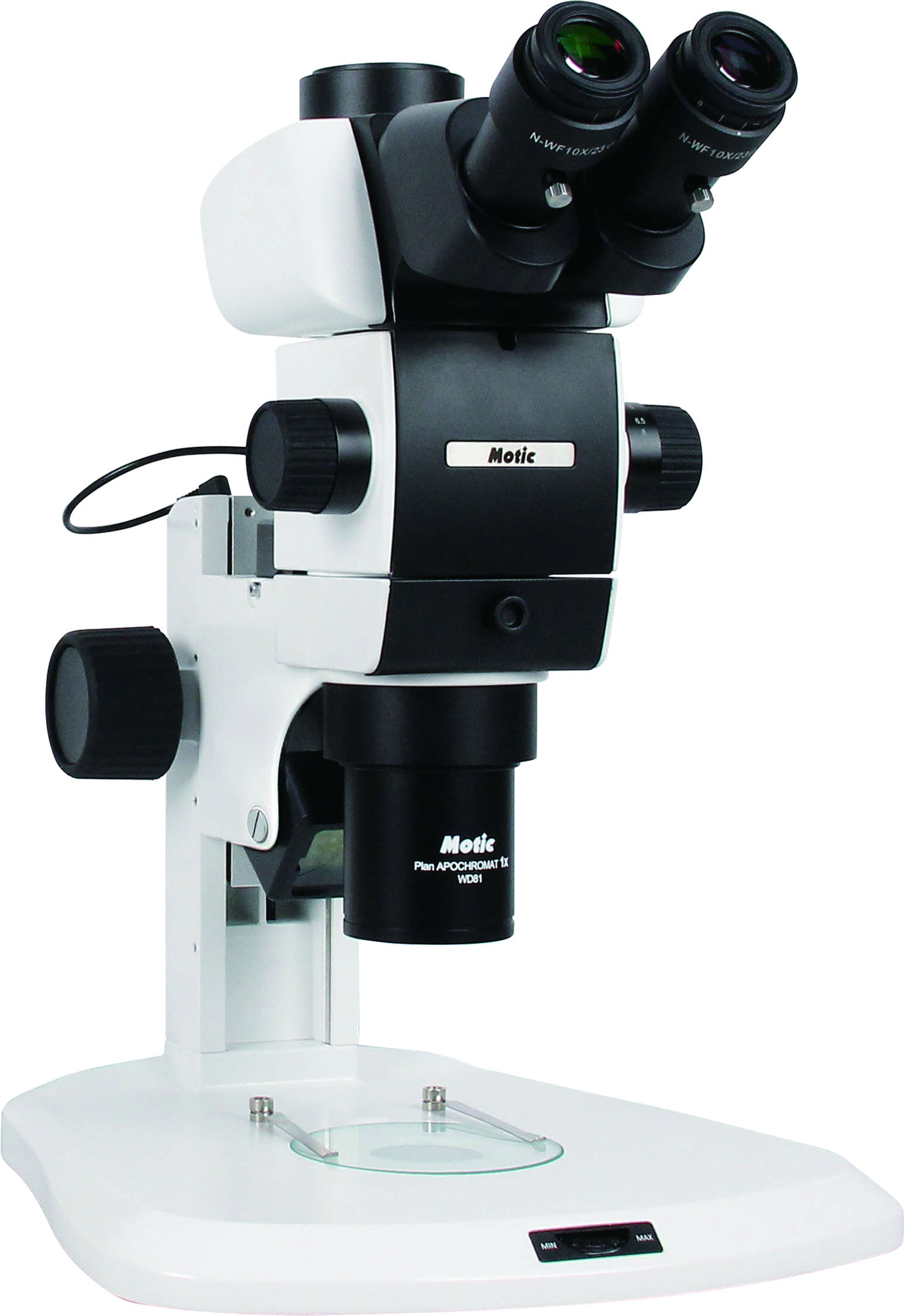

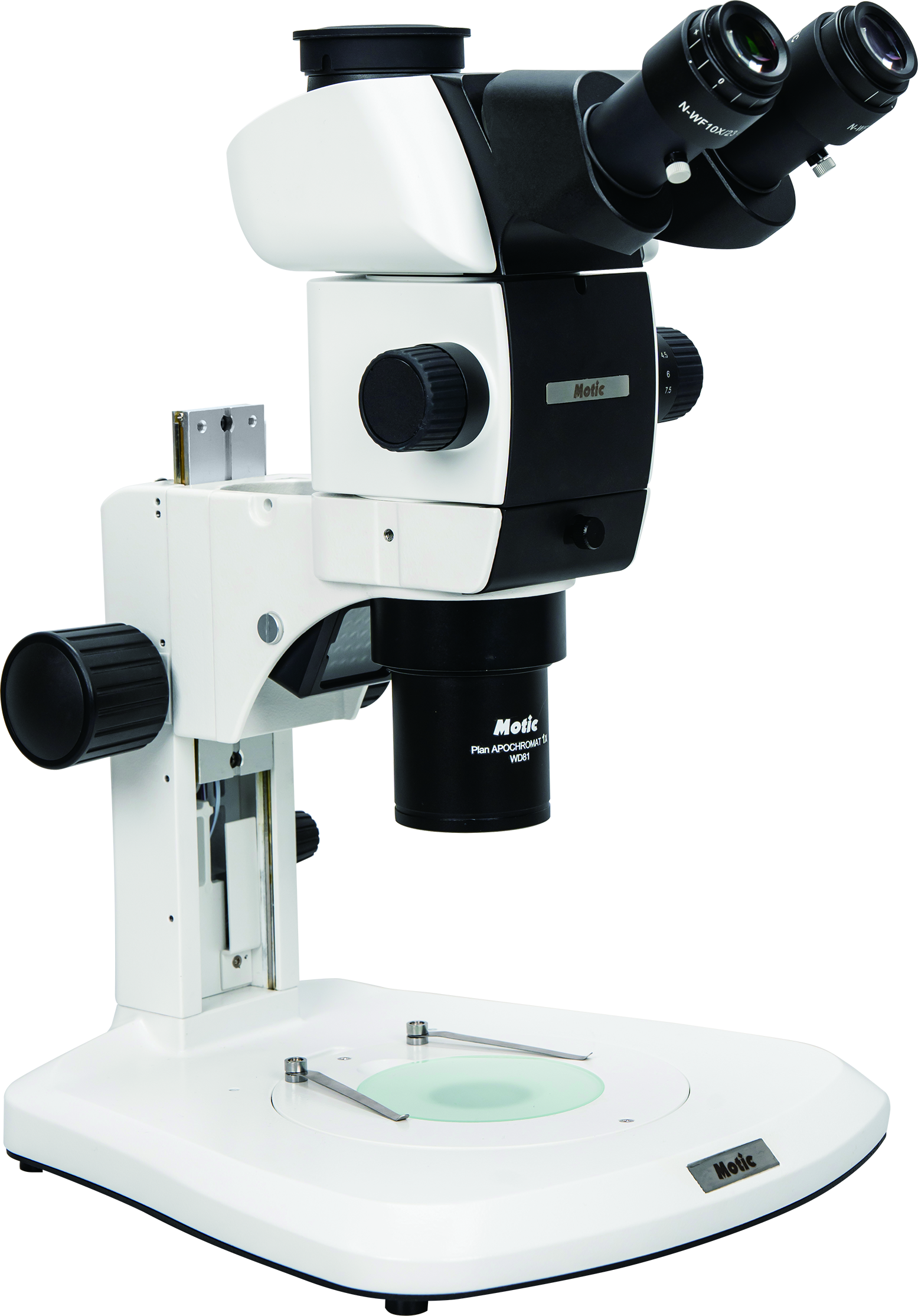

SM12
SM12B ACH1X (Fixed-arm stand with Plan Achromat 1X objective)
$4,795
Motic's SM12 represents a significant evolution in research-grade microscopy, specifically engineered for complex samples requiring higher magnification and superior precision. Building upon the Galilean Optical System, the SM12 series delivers a transformative highlight in color reproduction, resolution, and spatial information for advanced users in molecular biology, medical research, and high-level industrial QC.
Unrivaled Precision: SM12 Series
- Superior Imaging: Delivers elite optical resolution and true-to-life color with minimal distortion for critical analysis.
- High-Power 12:1 Zoom: Offers a versatile magnification range (0.67X to 8X) for seamless transitions from wide views to fine details.
- Repeatable Workflows: Features a 12-step magnification indicator with switchable click-stops for absolute consistency in data collection.

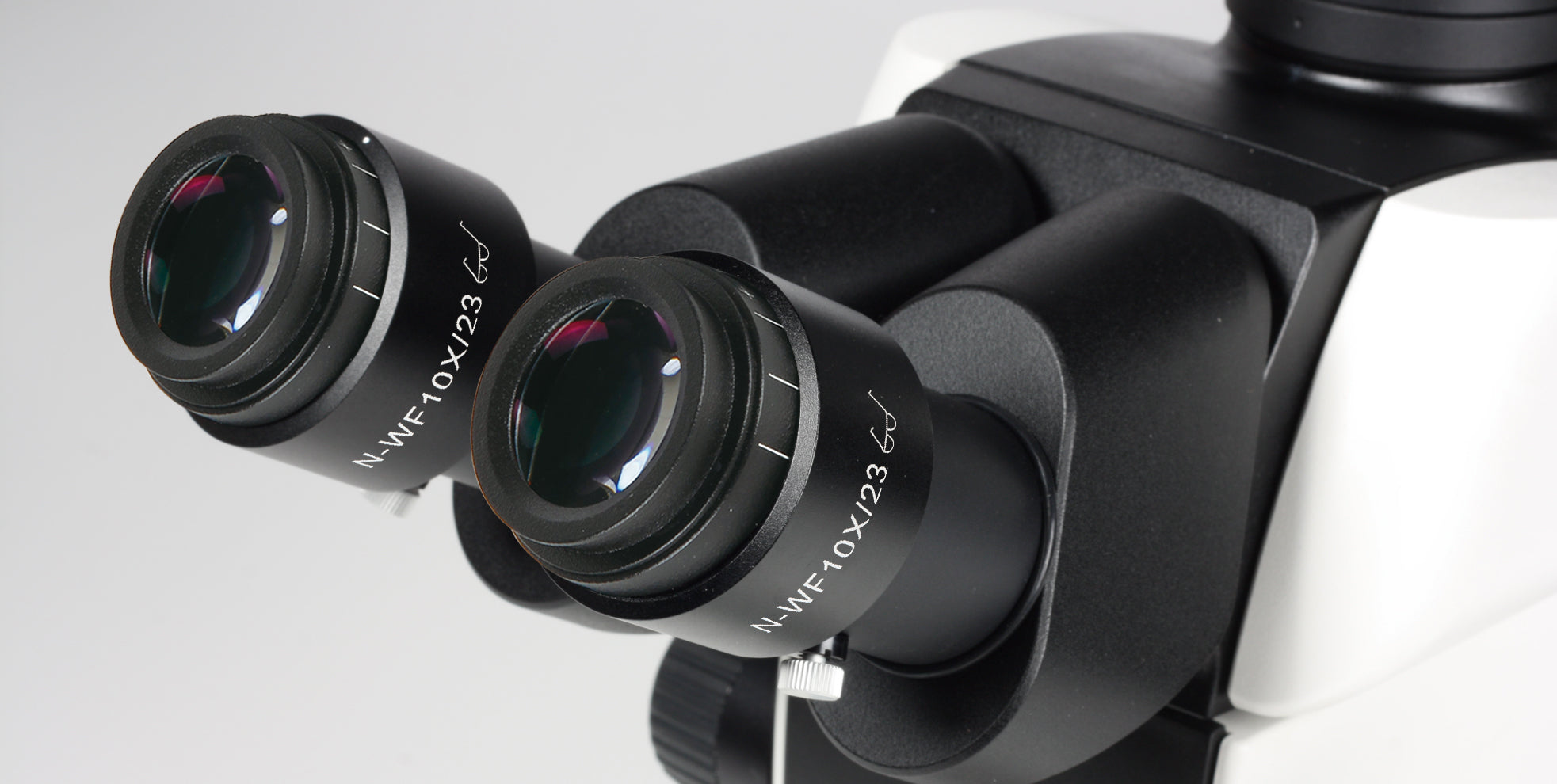

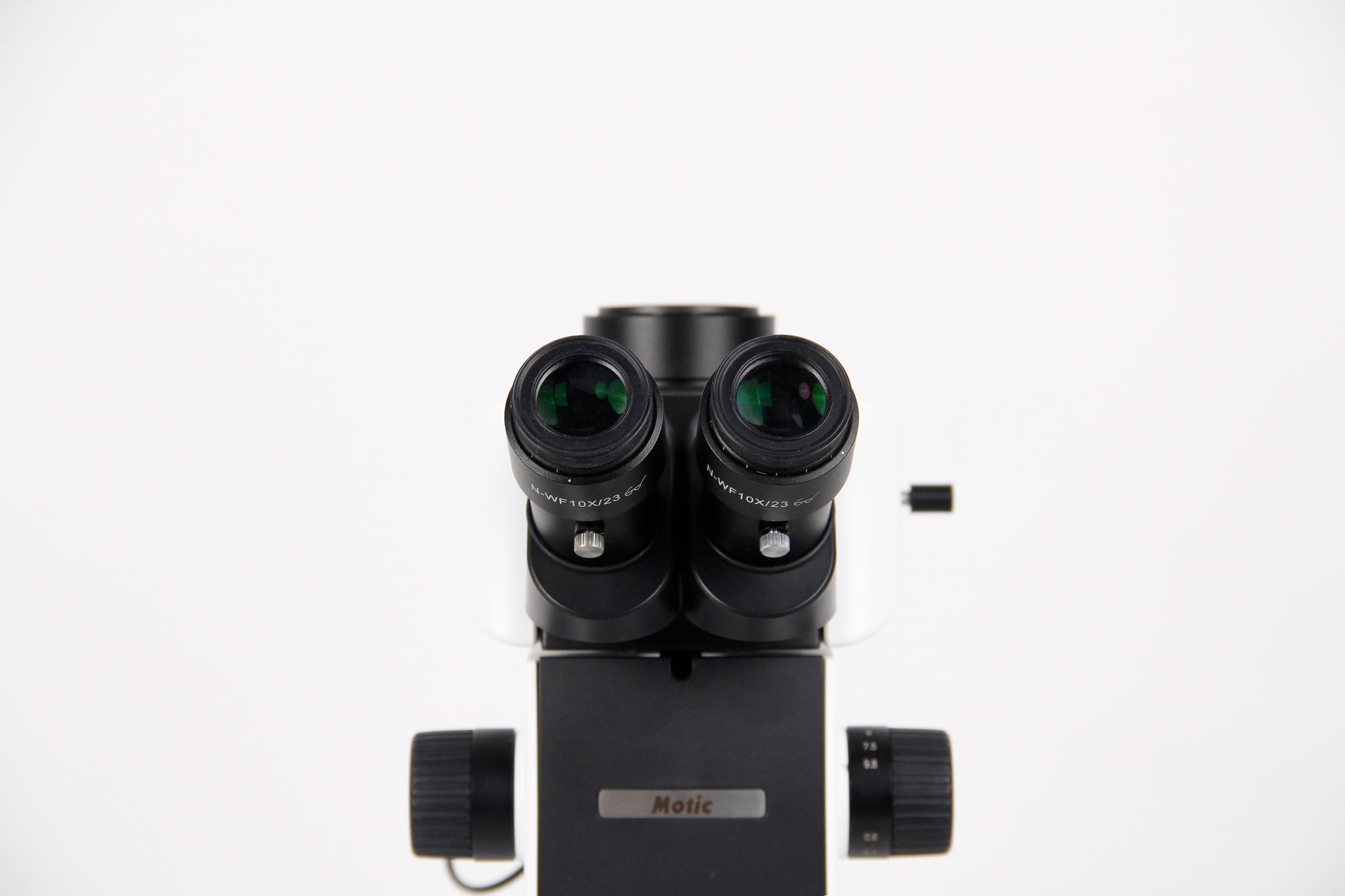

- Optimized Viewing: Includes UC WideField 10X/23 eyepieces with +/- 5 diopter adjustment to maximize field of view and user comfort.
- Ergonomic Stability: Designed with a large, ultra-flat base and a precise 120mm focusing stroke to reduce fatigue during long sessions.
- Elite Lens Selection: Available with Plan Achromat for edge-to-edge flatness or Plan Apochromat for peak color fidelity.
- Safety-First Engineering: Integrated ESD protection ensures the system is fully compliant for sensitive electronic and technical environments.
| Model | SM12 |
| Optical system | Galilean infinity optical design. Common Main Objective (CMO) |
| Observation tube | Binocular/ trinocular head (100:0/20:80) |
| Inclination | 30° inclined |
| Interpupillary distance | 55-75mm |
| Zoom range | 12:1 (0.67 ~ 8X) |
| Zoom steps | 12 Steps: 0.67, 0.8, 1, 1.25, 1.6, 2, 2.5, 3, 4, 5, 6.5, 8 Zoom stop mechanism can be turned on or off. |
| Camera adapters (optional) | 1X C-Mount camera adapter (No lens), 0.65X C-Mount camera adapter focusable, 0.5X C-Mount camera adapter focusable, 0.4X C-Mount camera adapter focusable, 0.35X C-Mount camera adapter focusable |
| Eyepieces |
N-Widefield 10X/23, with +/-5 diopter adjustment (standard) N-Widefield 12.5X/18, with +/-5 diopter adjustment (optional) N-Widefield 15X/16, with +/-5 diopter adjustment (optional) N-Widefield 20X/13, (optional) |
| Objective mounting | Threaded connection |

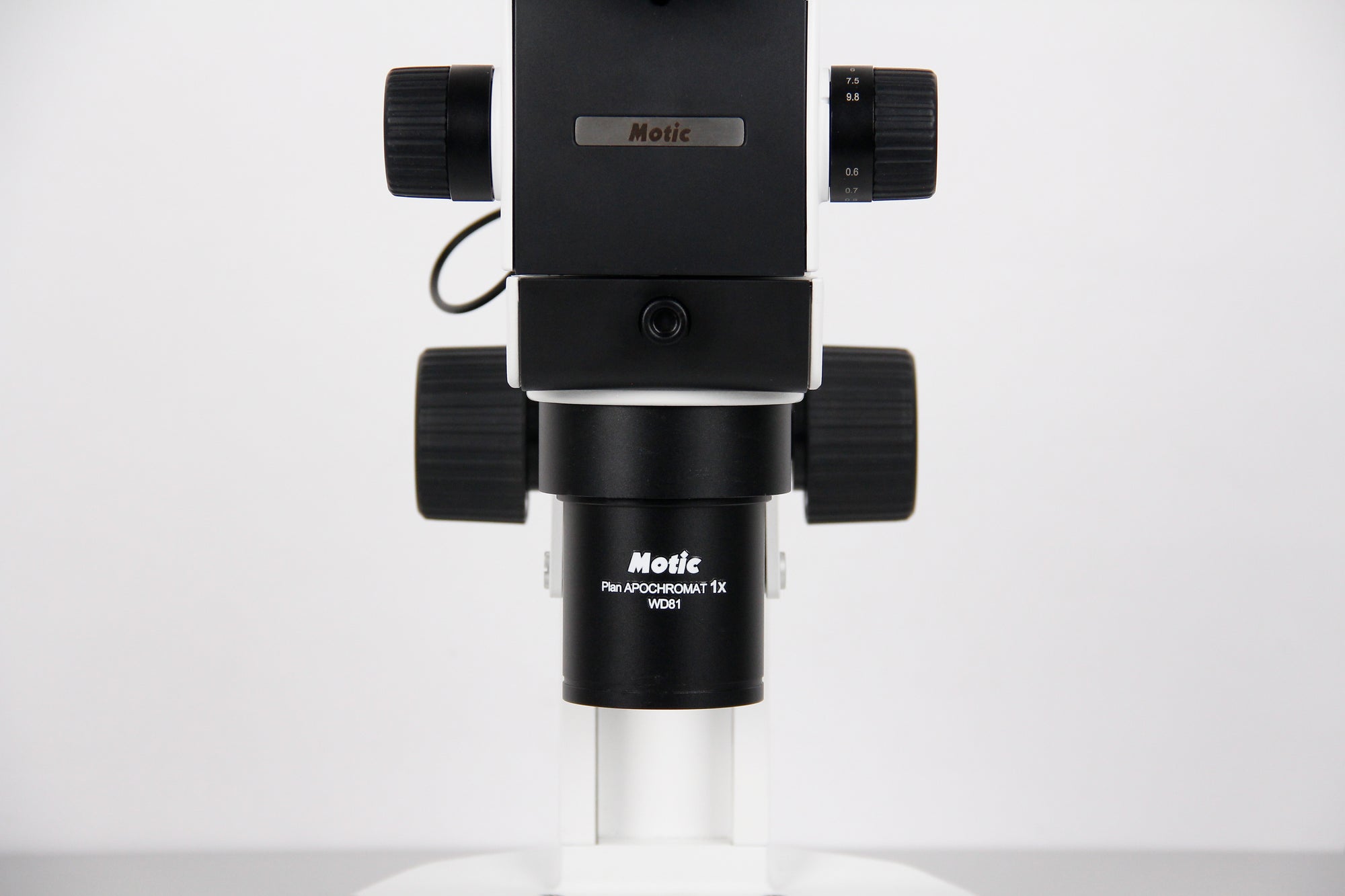

| Objective | ACH 1X, 256 Ip/mm, W/D 90mm (standard) PL APO 1X, 256 Ip/mm, W/D 81mm (optional) ACH 0.5X, 128 Ip/mm, W/D 198.5mm (optional, used with pole type plain stand ONLY) PL ACH 2X, 256 Ip/mm, W/D 29.5mm (optional) |
| Stand type | Standard large stand, Incident/ transmitted LED illumination large stand, Pole type plain stand, Incident/ Transmitted LED illumination Pole type stand |
| Head holders | Standard head holder, coarse and fine focusing head holder |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | Tension adjustment: 120mm |

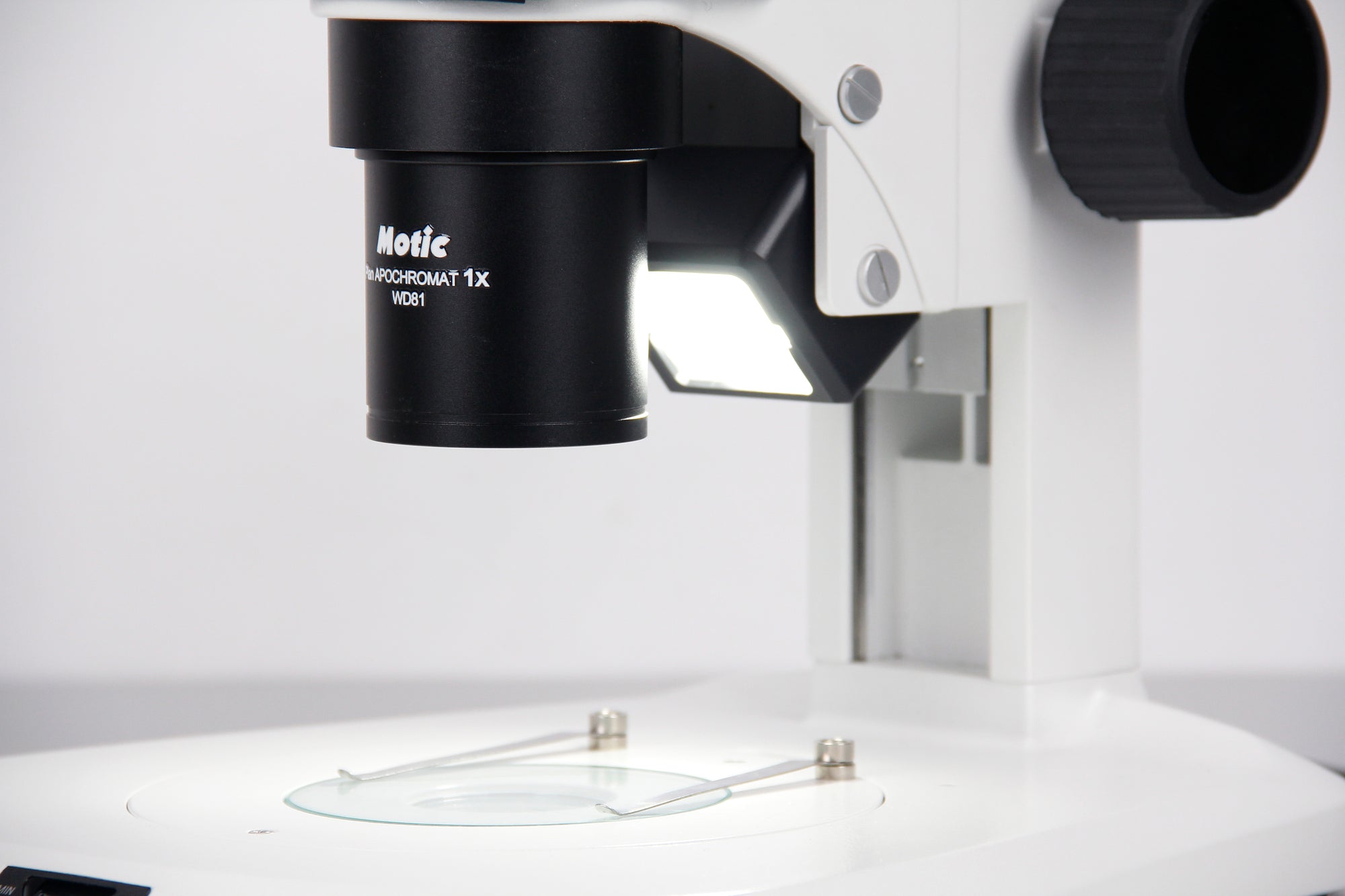

| Illumination light source | Transmitted LED illumination Incident LED illumination Input voltage: AC 100-240V, 50/60 Hz, 10W |
| Included accessories | Power adapter, Hex key wrench, Instruction manual |

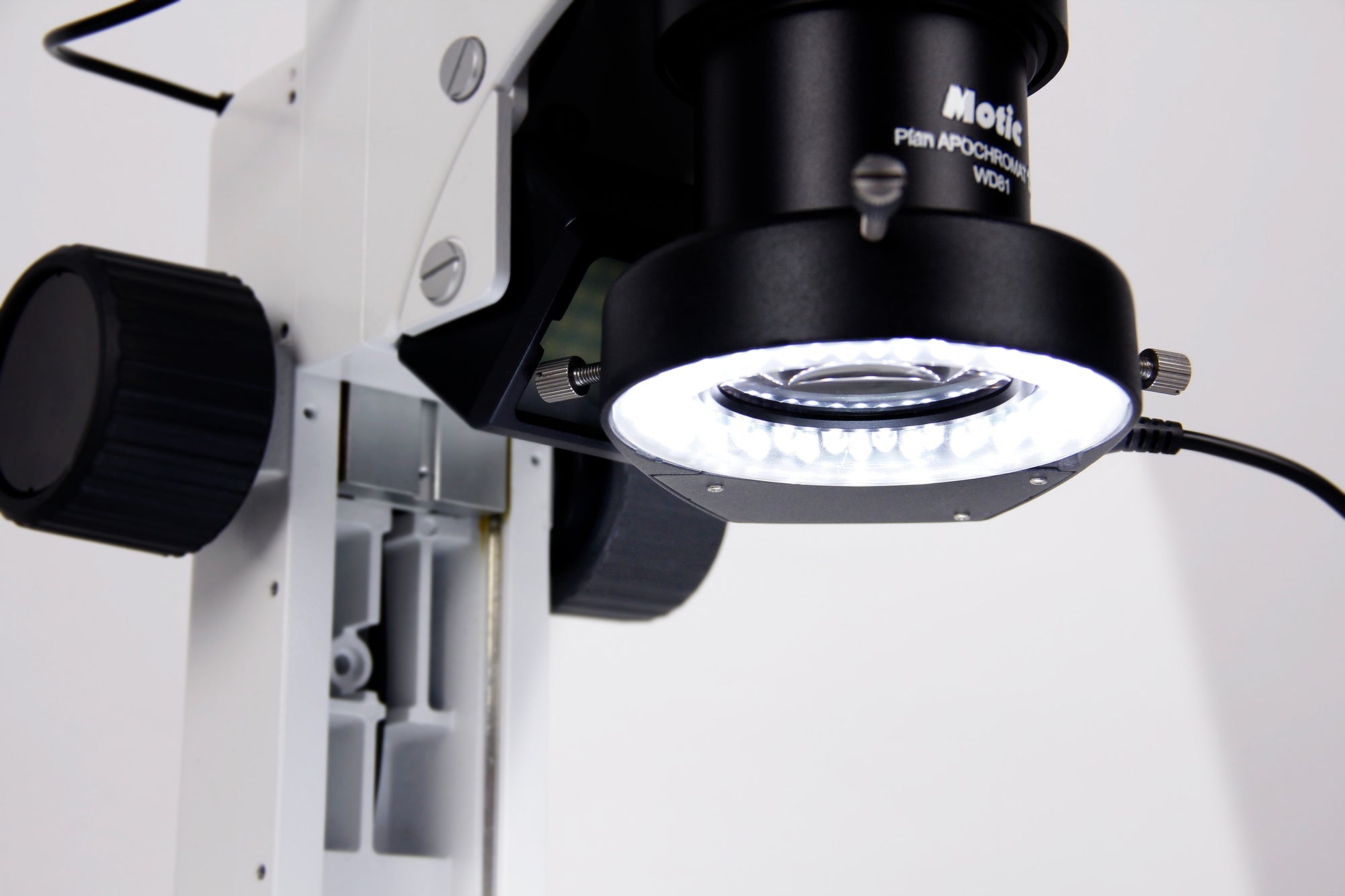

| Optional accessories | Black/white stage plate, Frosted glass plate, Glass plate, Sliding objective stage K series (Ø95mm), X-Y mechanical stage (Ø95mm), Darkfield illuminator, Composite polarizer, Standalone polarizer, LED oblique illumination, LED ring light, 4 split LED ring light, Fluorescence illumination adapter, Coaxial illumination adapter, Jewelry clamp, Color filters |
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
