SM16

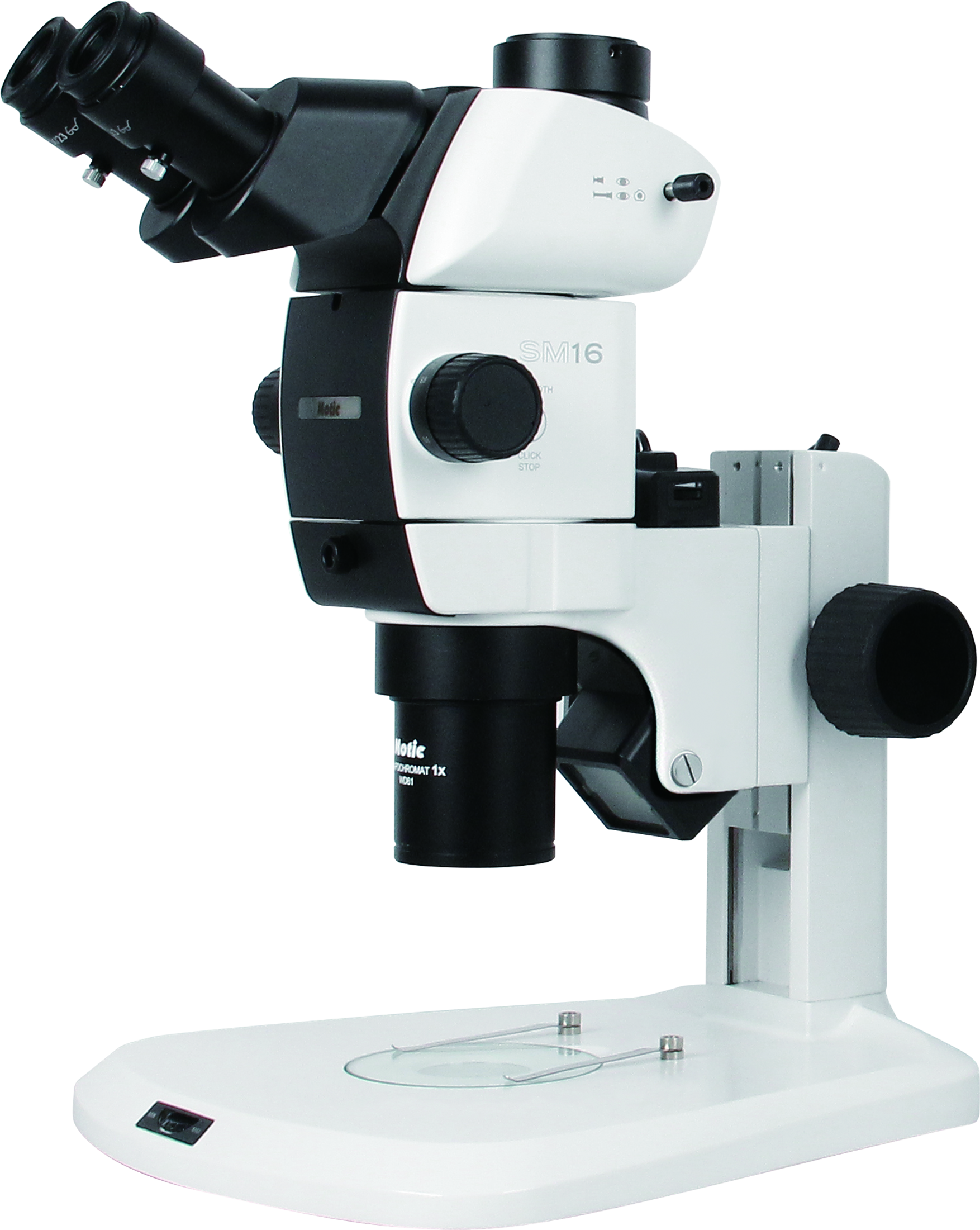

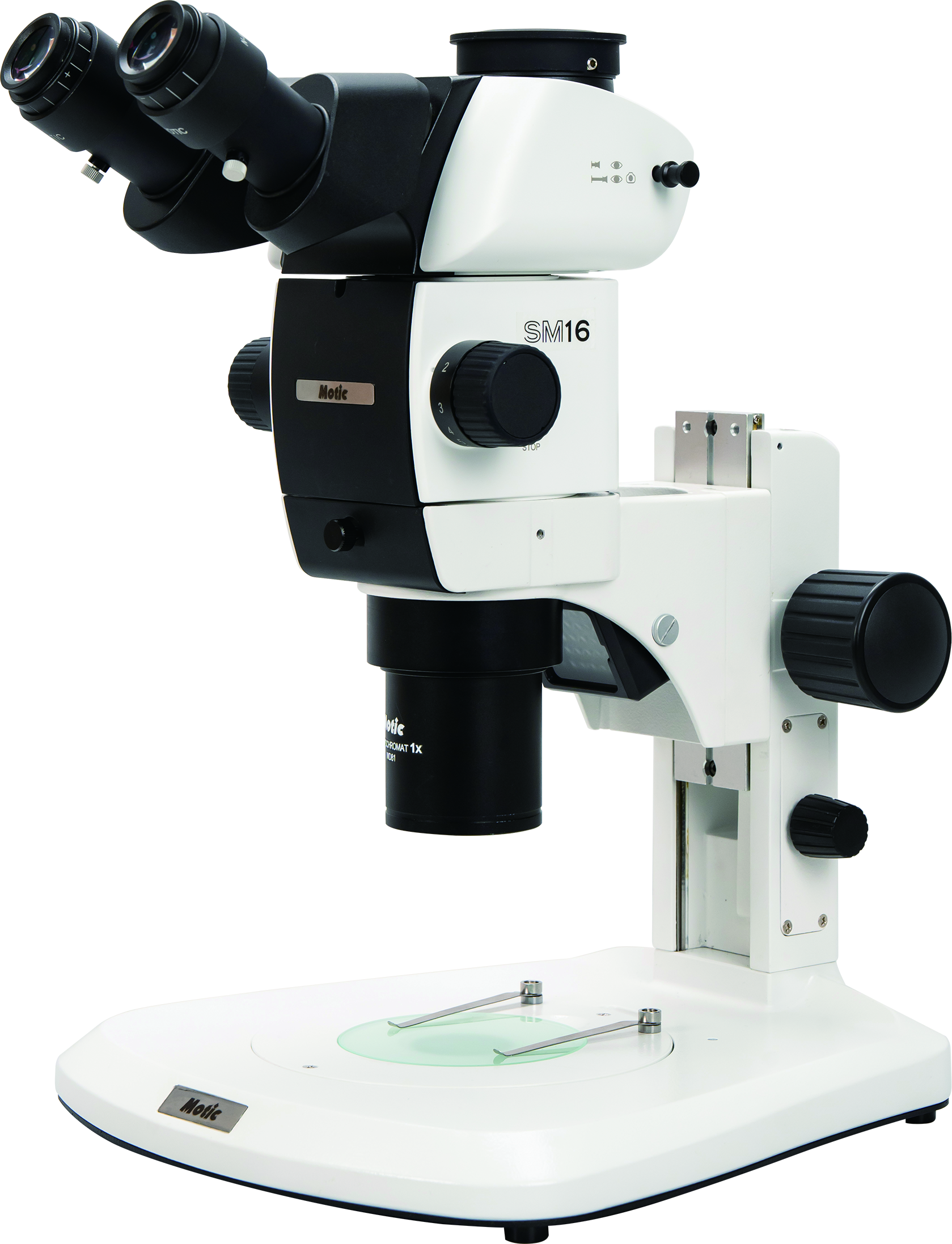

SM16B ACH1X (Fixed-arm stand with Plan Achromat 1X objective)
$6,111
Motic's SM16 is the flagship of the series, engineered for high-end research applications that demand the absolute maximum in magnification and resolution. Utilizing an advanced Galilean optical system, the SM16 provides an industry-leading zoom range and exceptional spatial detail, making it the definitive choice for professionals in advanced bioscience, medical research, and high-precision industrial QC.
Stereomicroscopes for the Best: SM16 Series
- Unmatched Optical Power: The SM16 delivers elite performance with ultra-high resolution, vibrant color fidelity, and virtually zero distortion for the most critical analytical tasks.
- Ergonomic Excellence: Designed with ultra-flat stand bases to ensure a relaxed posture for hands and forearms, facilitating comfort during intensive, long-term observation.
- Versatile Customization: A comprehensive selection of high-performance objectives and eyepieces allows the SM16 to be tailored to the most demanding individual requirements.
- Flagship Galilean System: The advanced optics of the SM16 feature a massive 16:1 Zoom system, providing an expansive magnification range of 6X-98X with standard optics.
- Elite Research Optics: For peak imaging results, the system supports specialized Plan Apochromatic objectives that provide ultimate color correction and superior working distances.
- Micro-Detail Resolution: Engineered to eliminate chromatic and spherical aberrations, the SM16 offers the highest resolving power in the series, capturing tiny details essential for complex technical and biological applications.
| Model | SM16 |
| Optical system | Galilean infinity optical design. Common Main Objective (CMO) |
| Observation tube | Binocular/ trinocular head (100:0/20:80) |
| Inclination | 30° inclined |
| Interpupillary distance | 55-75mm |
| Zoom range | 16:1 (0.6 ~ 9.8X) |

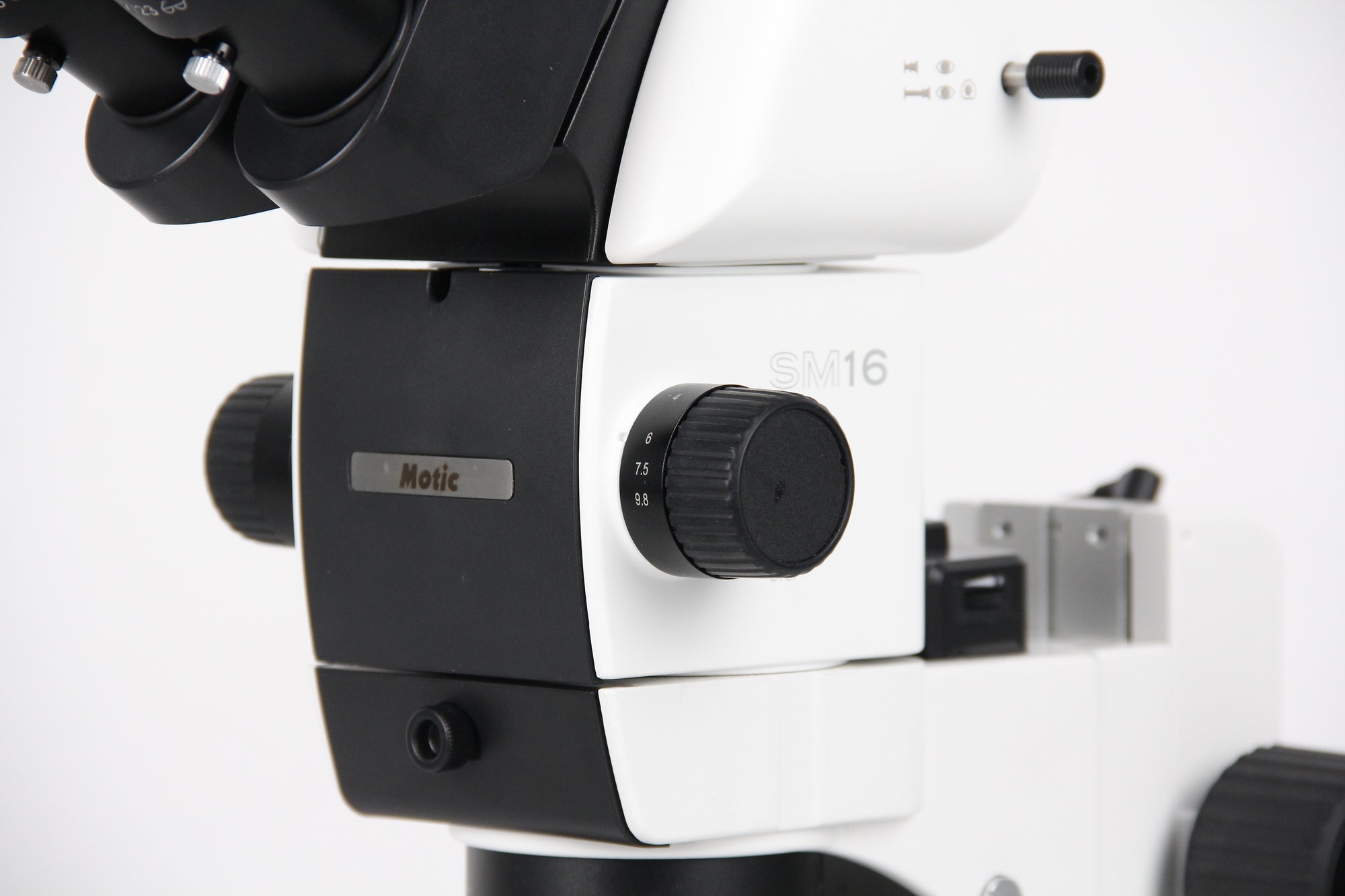

| Zoom steps | 12 Steps: 0.6, 0.7, 0.8, 1, 1.25, 1.6, 2, 3, 4, 6, 7.5, 9.8 Zoom stop mechanism can be turned on or off. |
| Camera adapters (optional) | 1X C-Mount camera adapter (No lens), 0.65X C-Mount camera adapter focusable, 0.5X C-Mount camera adapter focusable, 0.4X C-Mount camera adapter focusable, 0.35X C-Mount camera adapter focusable |
| Eyepieces |
N-Widefield 10X/23, with +/-5 diopter adjustment (standard) N-Widefield 12.5X/18, with +/-5 diopter adjustment (optional) N-Widefield 15X/16, with +/-5 diopter adjustment (optional) N-Widefield 20X/13, (optional) |
| Objective mounting | Threaded connection |
| Objective | ACH 1X, 256 Ip/mm, W/D 90mm (standard) PL APO 1X, 256 Ip/mm, W/D 81mm (optional) ACH 0.5X, 128 Ip/mm, W/D 198.5mm (optional, used with pole type plain stand ONLY) PL ACH 2X, 256 Ip/mm, W/D 29.5mm (optional) |
| Stand type | Standard large stand, Incident/ transmitted LED illumination large stand, Pole type plain stand, Incident/ Transmitted LED illumination Pole type stand |
| Head holders | Standard head holder, coarse and fine focusing head holder |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | Tension adjustment: 120mm |
| Illumination light source | Transmitted LED illumination Incident LED illumination Input voltage: AC 100-240V, 50/60 Hz, 10W |
| Included accessories | Power adapter, Hex key wrench, Instruction manual |

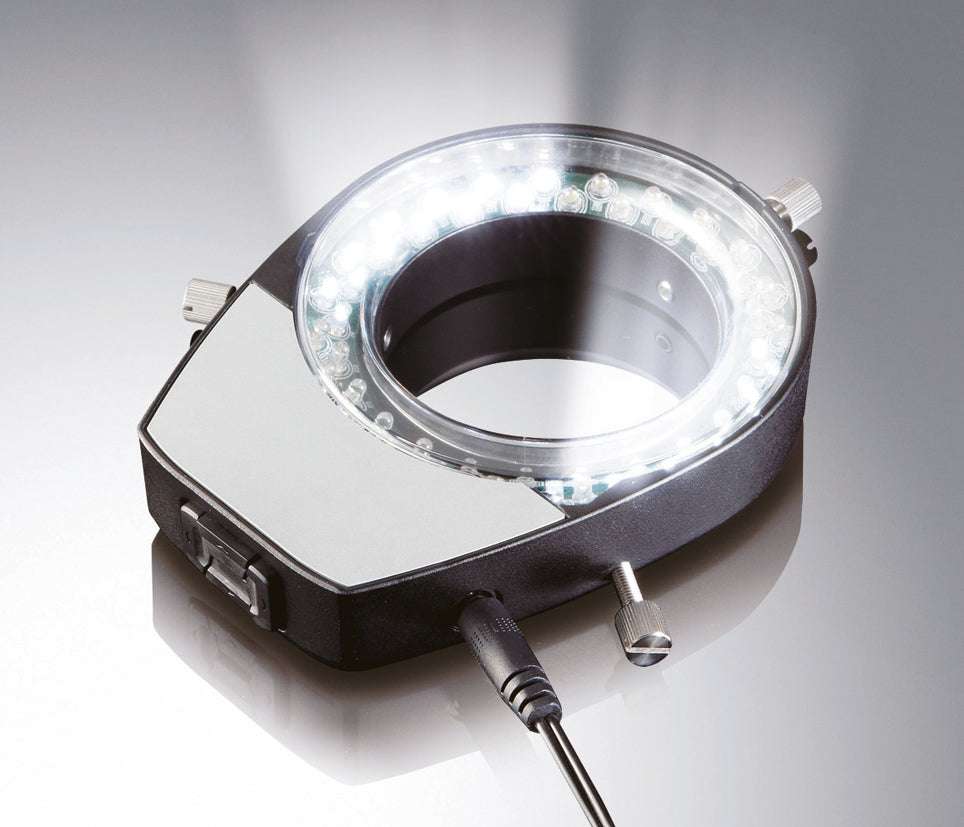

| Optional accessories | Black/white stage plate, Frosted glass plate, Glass plate, Sliding objective stage K series (Ø95mm), X-Y mechanical stage (Ø95mm), Darkfield illuminator, Composite polarizer, Standalone polarizer, LED oblique illumination, LED ring light, 4 split LED ring light, Fluorescence illumination adapter, Coaxial illumination adapter, Jewelry clamp, Color filters |
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
