Moticam A2
$391
Full-Screen at Full Speed.

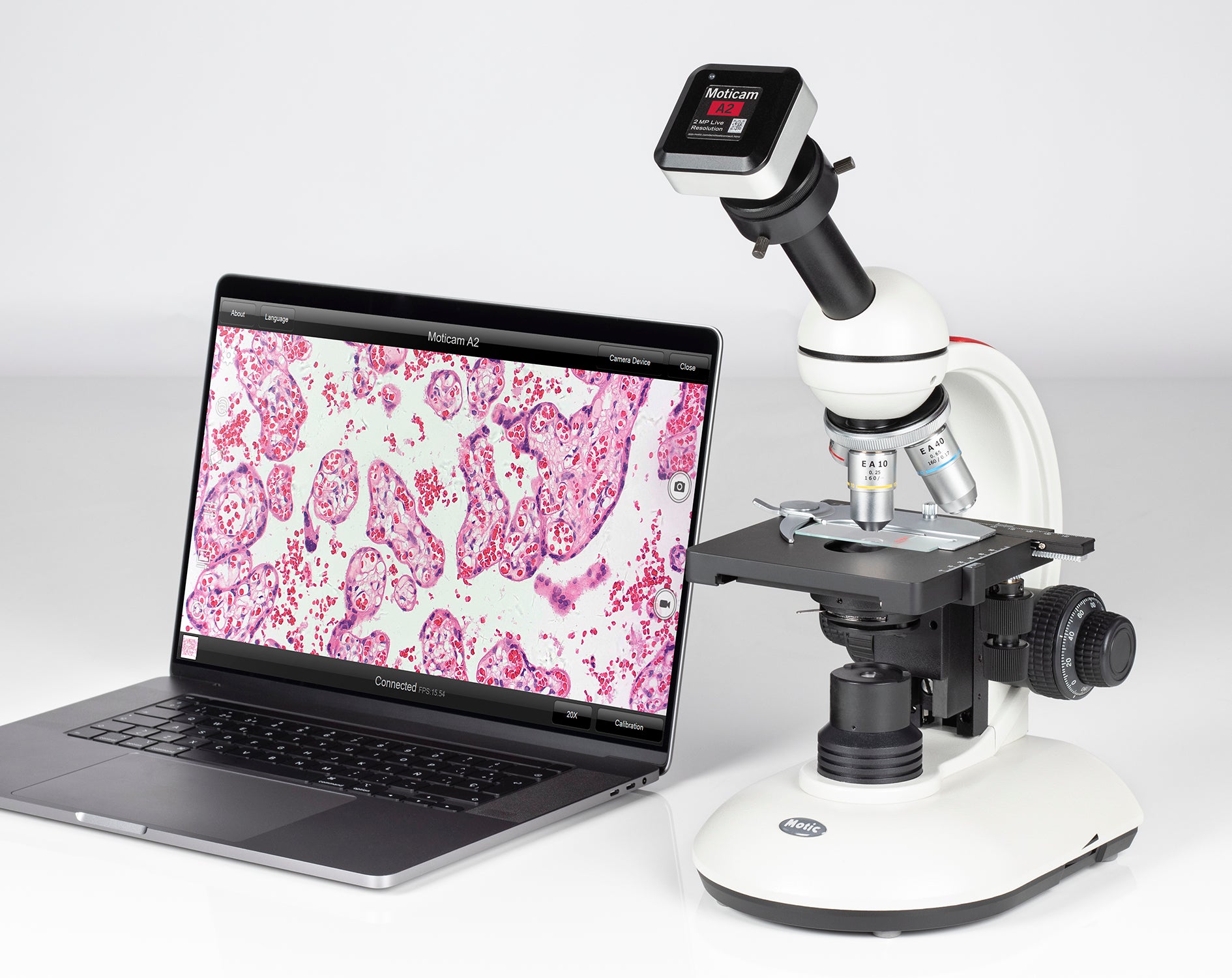

If you are after Full HD resolution, the Moticam A2 delivers 1920x1080 pixels at up to 30 frames per second. The built-in 1/3” sCMOS sensor provides clear and crisp imaging for a variety of microscopy applications.
Moticam A: Affordable, High-Quality USB Cameras for Education, Lab, and Research Applications
The Moticam A-Line series offers affordable and adaptable USB microscope cameras designed for education and routine imaging. With sCMOS sensors, multiple resolution options (1–16 MP), and easy C-mount integration, they enable simple image capture and documentation using MotiConnect software.

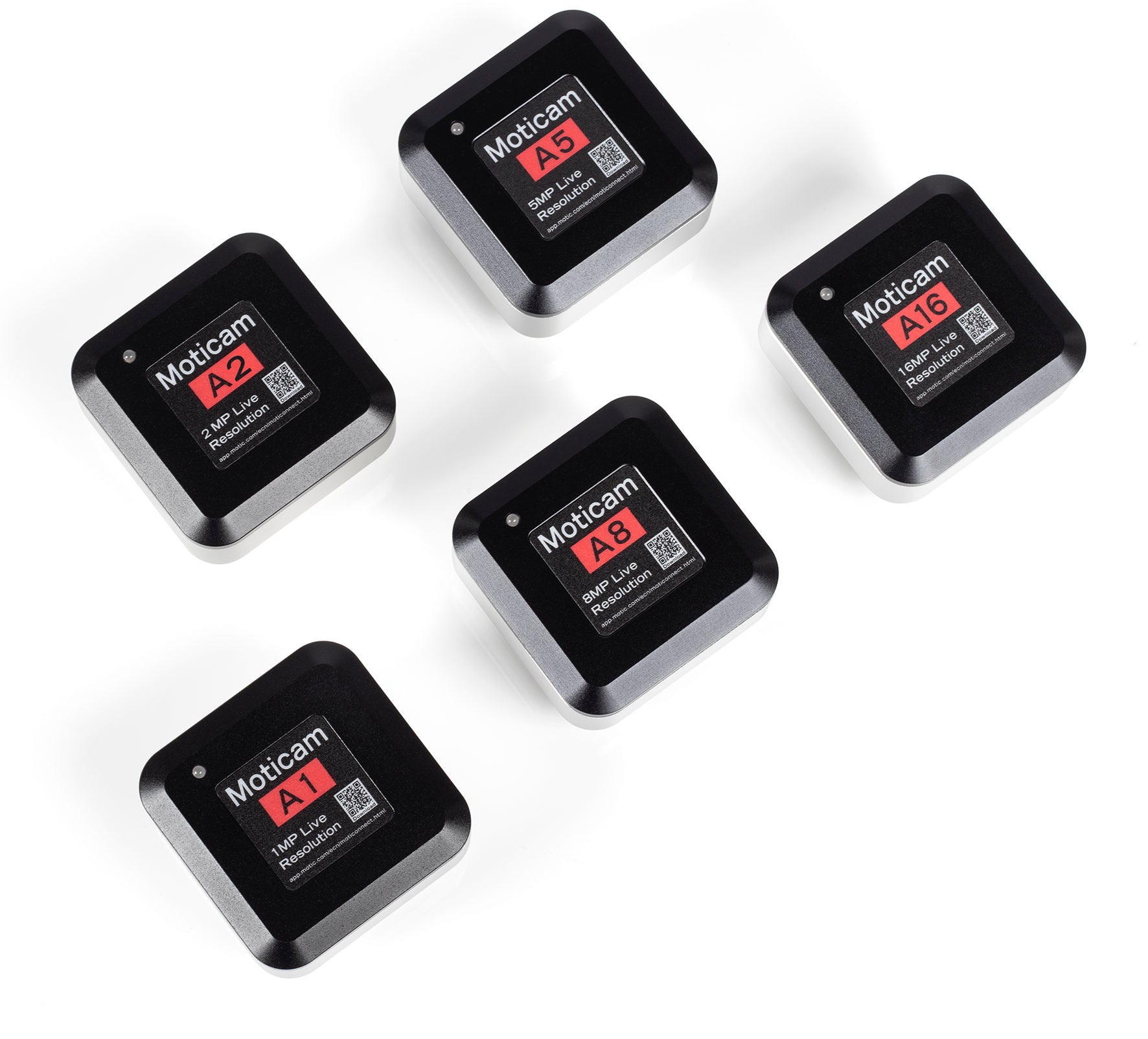

Discover the Right Moticam A-Line Camera for Every Lab and Classroom:
-
Moticam A1: Compact and reliable entry-level imaging for classrooms and routine lab observation
A compact and affordable 1MP USB microscope camera designed for basic image capture and live viewing, ideal for classroom demonstrations, routine lab observation, and introductory digital microscopy.
-
Moticam A2: Enhanced 2MP resolution for smooth live imaging and easy documentation
Delivering improved 2MP resolution and smooth live imaging, the Moticam A2 is perfect for teaching labs and routine documentation where reliable digital microscopy and easy image sharing are essential.
-
Moticam A5: High-detail 5MP imaging for education, lab documentation, and quality control
With its 5MP sensor, the Moticam A5 provides enhanced detail and clarity for capturing microscopy images, making it well suited for education, laboratory documentation, and quality control applications.
-
Moticam A8: Crisp 8MP imaging for advanced teaching and research applications
The 8MP Moticam A8 offers higher-resolution imaging and greater detail for more demanding teaching and research environments, supporting accurate documentation and analysis of biological specimens.
-
Moticam A16: Ultra-high 16MP resolution for precise research imaging and detailed specimen analysis
Featuring a powerful 16MP sensor, the Moticam A16 delivers ultra-high-resolution imaging for advanced laboratory work, enabling precise documentation, research imaging, and detailed specimen analysis.
| Camera | A1 | A2 | A5 | A8 | A16 |
| Sensor Type | sCMOS | ||||
| Sensor Size | 1 / 3.1" | 1 / 3.1" | 1 / 2.8" | 1 / 3" | 1 / 2.3" |
| Imaging Area | 5.95mm (Diagonal) | 5.95mm (Diagonal) | 6.52mm (Diagonal) | 5.91mm (Diagonal) | 7.77mm (Diagonal) |
| Capture Resolution | 1MP | 2MP | 5MP | 8MP | 16MP |
| Live Display Mode through USB (pixels) | 1280x720, 1024x768 |
1920x1080, 1280x720 |
2592x1944, 2048x1536, 1920x1080 |
3840x2160, 1920x1080 |
4608x3456, 3264x2448, 1920x1080 |
| Pixel Size | 4.1x4.1µm | 2.7x2.7µm | 2x2µm | 1.34x1.34µm | 1.34x1.34µm |
| Scan Mode | Progressive | ||||
| Shutter Mode | Rolling Shutter | ||||
| Data Transfer | USB 2.0 | ||||
| Max. Frames per second (*) | 1280x720 @ 30fps, 1024x768 @ 30fps |
1920x1080 @ 30fps, 1280x720 @ 30fps |
2592x1944 @ 30fps, 2048x1536 @ 30fps, 1920x1080 @ 30fps |
3840x2160 @ 15fps, 1920x1080 @ 30fps |
4608x3456 @ 15fps, 3264x2448 @ 15fps, 1920x1080 @ 30fps |
| Operating Temperature | From -10 to +60 Degrees Celsius non condensing | ||||
| Sensitivity | >2000mV | ||||
| Support Device | TWAIN, SDK and Direct Show Driver | ||||
| Supported OS | Microsoft Windows 10, MAC OSX10.9, Linux UBUNTU1604 or higher | ||||
| Minimum Computer Requirements | 2GHz dualcore - RAM memory 2GB | ||||
| Lens Mount | C-Mount | ||||
| Focusable lens | 12mm | ||||
| Software | MotiConnect for Windows/OSX/Linux (Download only) | ||||
| Functions | Still image & video capture, still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system | ||||
| Power Supply | 5V (USB supply) | ||||
| Package Includes | CS ring adaptor, focusable Lens, 30mm & 38mm eyepiece adapters, USB 2.0 cable, Motic 4-dot calibration slide, macro tube, calibration card | ||||
(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
Catalogues
| Moticam A Series - Catalogue |  |
| Moticam A2 - Flyer | |
| MotiConnect App - Flyer | |
Specification sheets
| Moticam A2 - SpecSheet | |
Instructions
| Moticam A Series - Quick Start Guide | |
| CCD Adapters for Moticams | |
| Connect Your Moticam | |
Moticam A Series Launch
Immerse yourself in a world of discovery: whether you are a microscope beginner, a teacher, or an experienced scientist, we always have your back by offering you our new range of Moticam A. Investigate and analyze your images through the user-friendly MotiConnect software and get ready to be mindblown with the Alphas of Moticams!
Moticam A Series microscopy camera Unboxing
Wondering what's inside the box of the Moticam A series microscopy camera? In this unboxing video, we reveal what accessories are included and why we call this the “All-in-one box” concept.
How to connect your Moticam onto the eyepiece
Learn how to connect your Moticam onto the eyepiece easily.
How to connect your Moticam onto the trinocular tube
Learn how to connect your Moticam onto the trinocular tube easily.
MotiConnect App for computers - First steps
Here's how to get started with our free MotiConnect App for computers. You'll learn how to download and install the app, select your device for the first time, and a general overview of the main tools and features of this fantastic microscopy app.
MotiConnect App - Calibration & Measurements
Wondering how to calibrate and take measurements on the MotiConnect App? Find out how easy it is to start with your investigation by watching this video, and discover how to make annotations and measurements on the great free MotiConnect microscopy App.
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
