AE2000 MET Trinocular
AE2000MET Trinocular 100W
$5,285

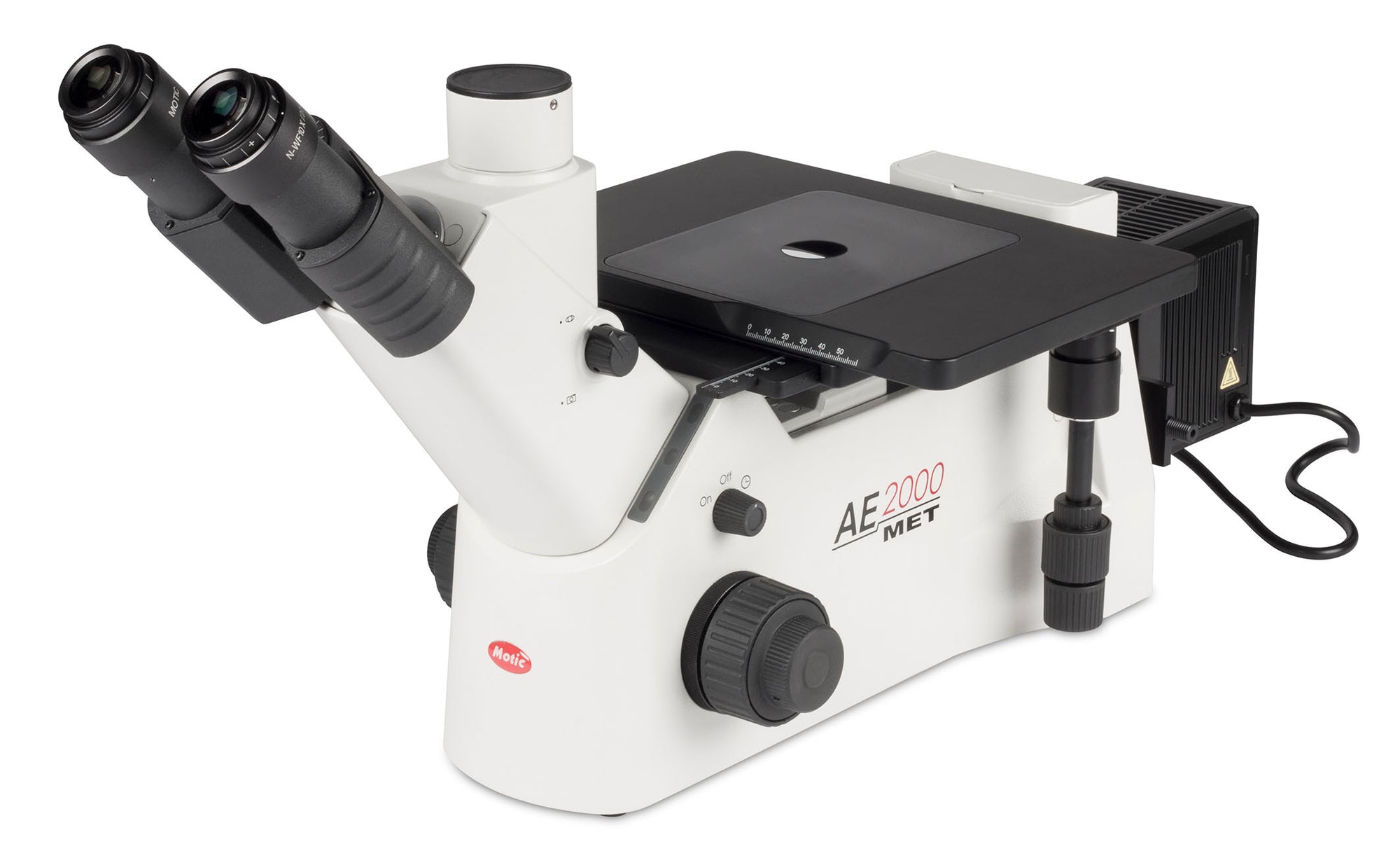

Motic’s AE2000MET is an Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulky samples within industries such as automotive, machinery, and metal fabrication. Large metal or die cast parts, too large to view under a conventional upright microscope, can easily be examined for failure analysis, material research or quality control.
- Descriptions
- Specifications
- Downloads
- Warranty
- Return Policy
- Reviews
AE2000MET Series - Inverted Metallurgical Microscope
With the new AE2000MET, Motic introduces an Inverted Metallurgical microscope dedicated to the inspection of bulky samples in automotive, machinery and steel industry. Large metal pieces or die casting parts, too large to be treated with an upright microscope model, can easily be examined to perform failure analysis, material research and quality control.
- Robust manufacturing quality for a long lifetime
- New BF/DF objectives for metallurgy
- Sufficient power resources

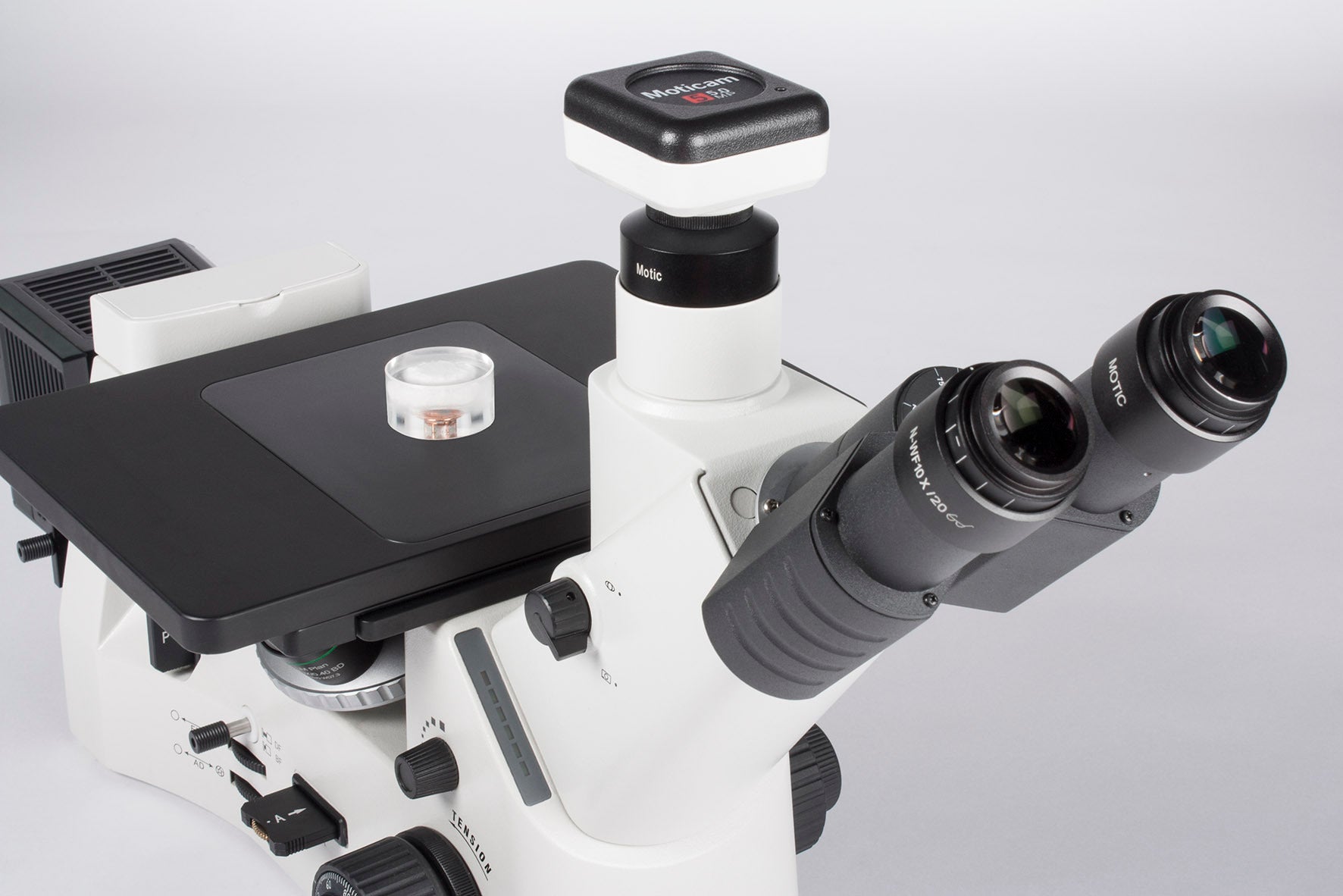

- A flexible upgrade for digital results
| Model | AE2000 MET Trinocular 100W | AE2000 MET Trinocular 100W (with LM PL objectives) | AE2000 MET Trinocular 100W (with LM BD objectives) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Inclination | 45° inclined | 45° inclined | 45° inclined |
| Trinocular light split | 100:0/20:80 | 100:0/20:80 | 100:0/20:80 |
| Interpupillary distance | 48-75mm | 48-75mm | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment |
| Nosepiece | Side facing quintuple | Side facing quintuple | Side facing quintuple |
| Objective classification | - | CCIS® LM Plan Achromatic, DIN | CCIS® LM BD Plan Achromatic, DIN (for Brightfield and Darkfield) |
| Objectives | - | 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm) | 5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), 50X/0.55 (WD 7.2mm) |
| Objective mounting thread | M32 | M32 with adapters to W 4/5" x 1/36" (RMS standard) | M32 |
| Stand type | Inverted | Inverted | Inverted |
| Stage | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts |
| Stage size | 280x192mm | 280x192mm | 280x192mm |
| Travel range X&Y | 50x50mm | 50x50mm | 50x50mm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm | 2µm | 2µm |
| Focusing stroke | 10mm | 10mm | 10mm |
| Transmitted illumination | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse |
| Illumination features | Sleeping mode | Sleeping mode | Sleeping mode |
| Transformer | External | External | External |
| Power supply | 100-240V (CE) | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, blue filter | Dust cover, power cord, Allen key, blue filter | Dust cover, power cord, Allen key, blue filter |
| Dimensions LxWxH | 673x280x345mm | 673x280x345mm | 673x280x345mm |
| Weight Net | 13kg | 13kg | 13kg |
| Standard contrast technique | Brightfield | Brightfield | Brightfield, darkfield |
| Polarization | Optional sliders | Optional sliders | Optional sliders |
| Darkfield | Optional objectives | - | Objectives |
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
Descriptions
AE2000MET Series - Inverted Metallurgical Microscope
With the new AE2000MET, Motic introduces an Inverted Metallurgical microscope dedicated to the inspection of bulky samples in automotive, machinery and steel industry. Large metal pieces or die casting parts, too large to be treated with an upright microscope model, can easily be examined to perform failure analysis, material research and quality control.
- Robust manufacturing quality for a long lifetime
- New BF/DF objectives for metallurgy
- Sufficient power resources
- A flexible upgrade for digital results
Specifications
| Model | AE2000 MET Trinocular 100W | AE2000 MET Trinocular 100W (with LM PL objectives) | AE2000 MET Trinocular 100W (with LM BD objectives) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Inclination | 45° inclined | 45° inclined | 45° inclined |
| Trinocular light split | 100:0/20:80 | 100:0/20:80 | 100:0/20:80 |
| Interpupillary distance | 48-75mm | 48-75mm | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment |
| Nosepiece | Side facing quintuple | Side facing quintuple | Side facing quintuple |
| Objective classification | - | CCIS® LM Plan Achromatic, DIN | CCIS® LM BD Plan Achromatic, DIN (for Brightfield and Darkfield) |
| Objectives | - | 5X/0.13 (WD 20.3mm), 10X/0.25 (WD 17.5mm), 20X/0.40 (WD 8.1mm), 50X/0.55 (WD 8.4mm) | 5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), 50X/0.55 (WD 7.2mm) |
| Objective mounting thread | M32 | M32 with adapters to W 4/5" x 1/36" (RMS standard) | M32 |
| Stand type | Inverted | Inverted | Inverted |
| Stage | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts | Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts |
| Stage size | 280x192mm | 280x192mm | 280x192mm |
| Travel range X&Y | 50x50mm | 50x50mm | 50x50mm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2µm | 2µm | 2µm |
| Focusing stroke | 10mm | 10mm | 10mm |
| Transmitted illumination | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse | Koehler Quartz halogen 12V/100W with intensity control, External lamphouse |
| Illumination features | Sleeping mode | Sleeping mode | Sleeping mode |
| Transformer | External | External | External |
| Power supply | 100-240V (CE) | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, blue filter | Dust cover, power cord, Allen key, blue filter | Dust cover, power cord, Allen key, blue filter |
| Dimensions LxWxH | 673x280x345mm | 673x280x345mm | 673x280x345mm |
| Weight Net | 13kg | 13kg | 13kg |
| Standard contrast technique | Brightfield | Brightfield | Brightfield, darkfield |
| Polarization | Optional sliders | Optional sliders | Optional sliders |
| Darkfield | Optional objectives | - | Objectives |
