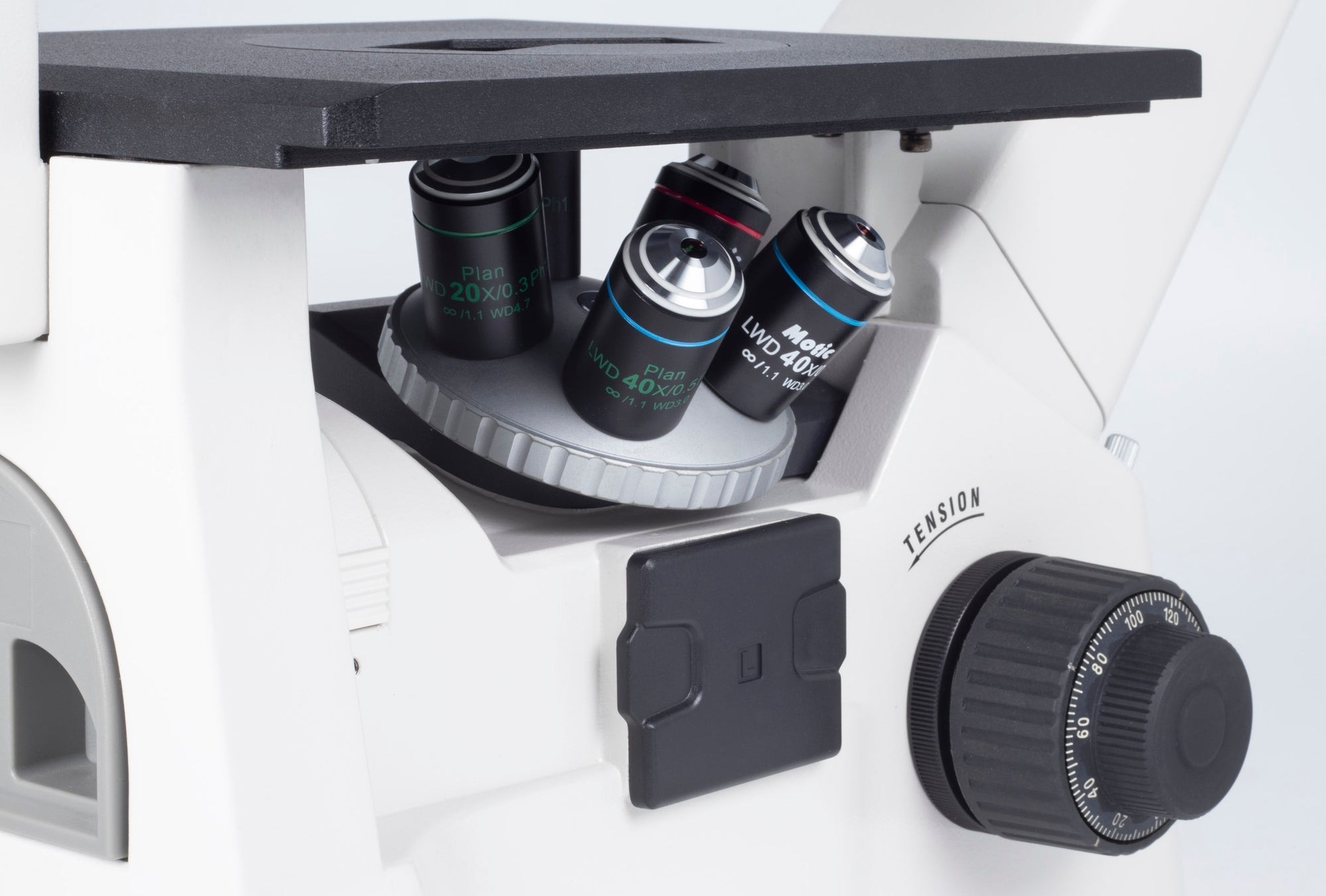

AE31 Elite
LED Trinocular Inverted Microscope
$4,450
The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects. In order to harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses. All accessories from the BA series such as the C-mounts, additional eyepieces, etc. can be used without restriction on AE31 Elite. Upgradable options like fluorescence are available within this inverted microscope series.
- Specifications
- Downloads
- Videos
- Warranty
- Return Policy
- Reviews
| Model | AE31E Binocular | AE31E Trinocular |
| Observation tube | Binocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm) | Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm) |
| Diaphragm | Iris diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield WF10X/22mm with diopter adjustment | Widefield WF10X/22mm with diopter adjustment |
| Fine focus precision | 2µm | 2µm |
| Fluorescence | Optional HBO | Optional HBO |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 10mm | 10mm |
| Free working distance | Working distance without condenser 231mm | Working distance without condenser 231mm |
| Illumination features | Auto-OFF and Light Memory function | Auto-OFF and Light Memory function |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W | Quartz halogen 6V/30W or LED 3W |
| Inclination | 45° inclined | 45° inclined |
| Interpupillary distance | 48-75mm | 48-75mm |
| Nosepiece | Left side facing quintuple | Left side facing quintuple |
| Objective classification | CCIS® Plan Achromatic, DIN | CCIS® Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD PH40X/0.50 (WD 3.0mm) | 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD PH40X/0.50 (WD 3.0mm) |
| Phase contrast | Slider | Slider |
| Stage | Plain stage with metal and glass stage inserts | Plain stage with metal and glass stage inserts |
| Stage size | 200x239mm | 200x239mm |
| Stand type | Inverted | Inverted |
| Standard contrast technique | Brightfield, phase contrast | Brightfield, phase contrast |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control | Koehler Quartz halogen 6V/30W with intensity control |
| Transformer | Internal | Internal |
| Power supply | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse | Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse |
| Dimensions LxWxH | 556x200x529mm | 556x200x529mm |
| Weight Net | 11.7kg | 11.7kg |
Contrast Methods - Phase Contrast on AE2000 & AE31E
Discover how to perform the Phase contrast method on our AE2000 & AE31E inverted microscopes.
Contrast Methods - HBO lamphouse set-up and alignment for BA410E & AE31E
Learn how to set-up and align the Fluorescence HBO lamphouse for the BA410E & AE31E upright and inverted microscopes.
Contrast Methods - How to setup the fluorescence attachment on the AE31E
Discover how to setup the fluorescence attachment in our AE31E inverted microscope.
Motic Lumos Fluorescence LED illuminator - Making visible the invisible
Discover our most advanced fluorescence LED illuminator, which integrates seamlessly with our PA53 BIO series, BA410E, and AE31E microscopes to produce dazzling images of fluorochrome-labelled specimens.
How to adjust the tension of the focusing system (ring). E.g. AE Series
Learn how easy it is to adjust the tension of the focusing system of your Motic microscope.
How to avoid repairs in your microscope
Do you want to know how to keep your microscope in its best condition? In this video, we will give you some basic tricks to carry out; before, during, and after its use and thus avoid possible repairs.
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
