BA310 Halogen

$1,720


The demands placed on any routine microscope for daily work needs careful focus on every microscopic detail. The new BA310 series features a powerful adjustable light source to meet both delicate and detailed lighting requirements for all sample types while the fully featured Koehler illumination helps in highlighting even the weakest stained specimens.


          ModelBA310 LED Binocular (No longer available)BA310 LED Trinocular (No longer Available)BA310 LED Digital
          Observation tubeBinocular head, Siedentopf type, 360° swivelingTrinocular head, Siedentopf type, 360° swivelingBinocular head, Siedentopf type with Built-in digital camera
          Optical systemColour Corrected Infinity Optical System (CCIS®)Colour Corrected Infinity Optical System (CCIS®)Colour Corrected Infinity Optical System (CCIS®)

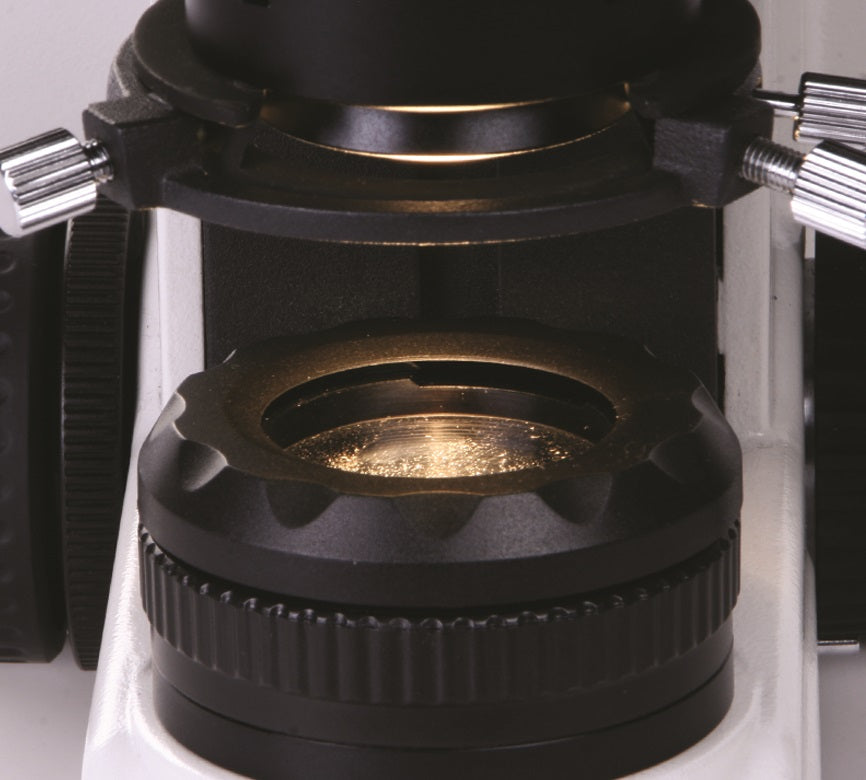

          CondenserFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast slidersFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast slidersFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
          DarkfieldOptional slider/turretOptional slider/turretOptional slider/turret
          DiaphragmIris diaphragmIris diaphragmIris diaphragm
          Diopter adjustmentOn both eyepieces, +/- 5 diopterOn both eyepieces, +/- 5 diopterOn both eyepieces, +/- 5 diopter
          EyepiecesWidefield N-WF10X/20mm with diopter adjustmentWidefield N-WF10X/20mm with diopter adjustmentWidefield N-WF10X/20mm with diopter adjustment
          Filter holderOn top of the illuminatorOn top of the illuminatorOn top of the illuminator with fixing cap
          Fine focus precision2µm2µm2µm
          Focus mechanismCoaxial coarse and fine focusing system with tension adjustmentCoaxial coarse and fine focusing system with tension adjustmentCoaxial coarse and fine focusing system with tension adjustment
          Focusing stroke20mm20mm20mm
          Inclination30° inclined, 360° rotating30° inclined, 360° rotating30° inclined, 360° rotating
          Interpupillary distance48-75mm48-75mm55-75mm
          NosepieceReversed quintupleReversed quintupleReversed quintuple

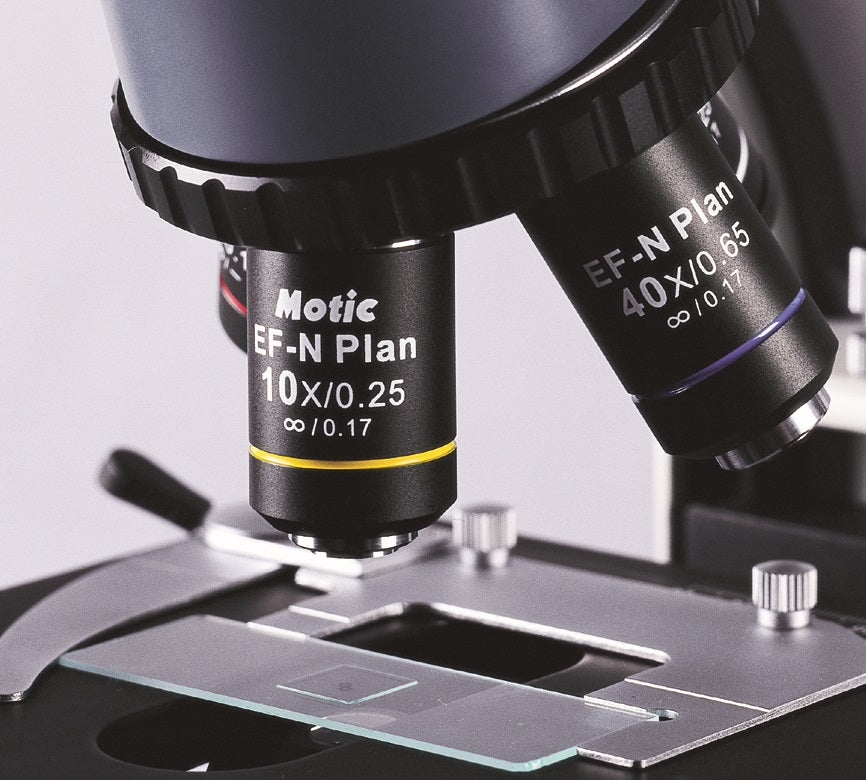

          Objective classificationCCIS® EC Plan Achromatic, DINCCIS® EC Plan Achromatic, DINCCIS® EC Plan Achromatic, DIN
          Objective mounting threadW 4/5"x1/36" (RMS standard)W 4/5"x1/36" (RMS standard)W 4/5"x1/36" (RMS standard)
          Objectives4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
          Phase contrastOptional slider/turretOptional slider/turretOptional slider/turret
          PolarizationOptional add-onOptional add-onOptional add-on
          StageMechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holderMechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holderMechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holder
          Stage size175x140mm175x140mm175x140mm
          Stand typeUprightUprightUpright
          Standard contrast techniqueBrightfieldBrightfieldBrightfield
          Transmitted illuminationKoehler 6V/30W HalogenKoehler 6V/30W HalogenKoehler 6V/30W Halogen
          Travel range X&Y76x50mm76x50mm76x50mm
          Upper limit stopUpper limit stop preset but adjustableUpper limit stop preset but adjustableUpper limit stop preset but adjustable
          TransformerInternalInternalInternal
          Power supply100-240V (CE)100-240V (CE)100-240V (CE)
          Accessories includedDust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screwDust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screwDust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw, calibration slide, USB cable
          Dimensions LxWxH400x220x400mm400x220x400mm400x220x458mm
          Weight Net8.6kg8.6kg8.8kg
