BA310POL
Binocular
$4,276
Based on the success of its popular BA Microscope Series for biomedical applications, Motic is pleased to introduce the BA310POL, an extremely powerful yet affordable polarization microscope for transmitted light samples.
The BA310POL is designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials industry where repeatable observations can be performed with efficiency and reliability. The BA310POL also works especially well in educational applications of material professions, where affordability and ease-of-use are the key requirements.
- Specifications
- Downloads
- Videos
- Warranty
- Return Policy
- Reviews
| Model | BA310 POL Binocular | BA310 POL Trinocular (20:80 option) |
| Observation tube | Binocular head, Siedentopf type | Trinocular head, Siedentopf type |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) | Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) |
| Diaphragm | Iris diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment and cross reticle on right eyepiece | Widefield N-WF10X/20mm with diopter adjustment and cross reticle on right eyepiece |
| Filter holder | On top of the illuminator with fixing cap | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm | 2µm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 17mm | 17mm |
| Illumination features | Rotatable polarizer 360° | Rotatable polarizer 360° |
| Inclination | 30° inclined, 360° rotating | 30° inclined, 360° rotating |
| Interpupillary distance | 55-75mm | 55-75mm |
| Nosepiece | Reversed quadruple, single centerable positions | Reversed quadruple, single centerable positions |
| Objective classification | CCIS® EC Plan Achromatic (strain-free), DIN | CCIS® EC Plan Achromatic (strain-free), DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 60X/0.80/S (WD 0.35mm) | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 60X/0.80/S (WD 0.35mm) |
| Polarization | Swing in/out | Swing in/out |

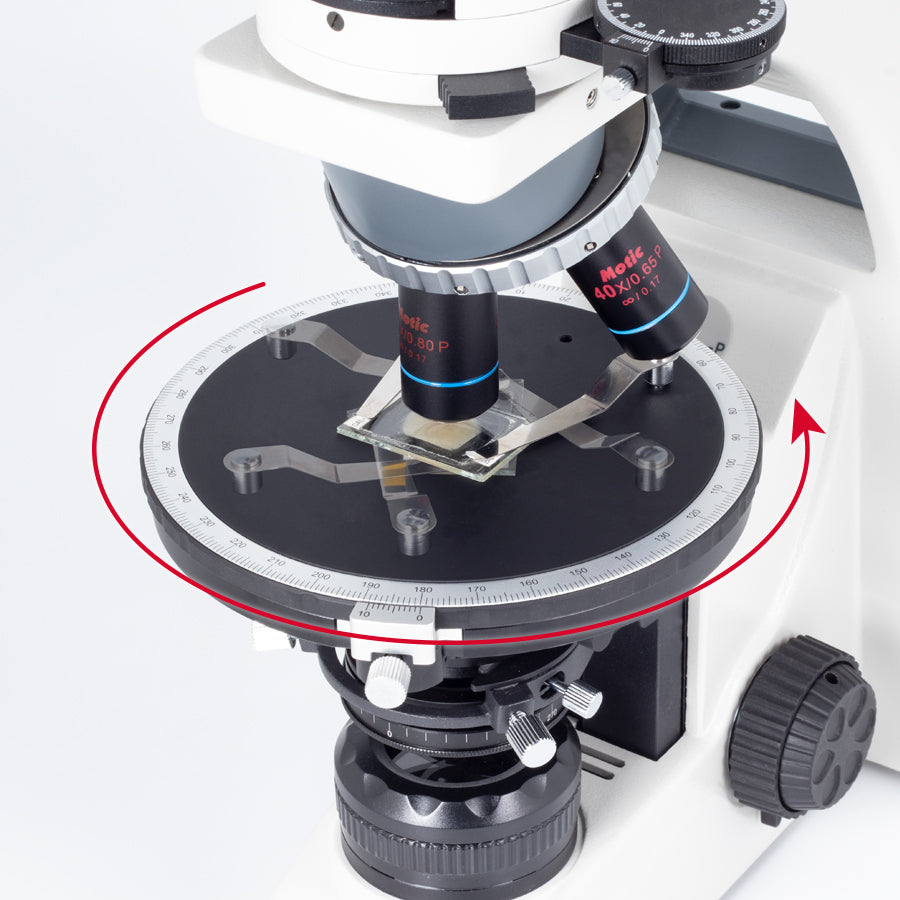

| Stage | Circular rotating 360°, lockable | Circular rotating 360°, lockable |
| Stage size | Ø160mm | Ø160mm |
| Stand type | Upright | Upright |
| Standard contrast technique | Brightfield, polarizing | Brightfield, polarizing |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control | Koehler Quartz halogen 6V/30W with intensity control |
| Travel range X&Y | 1° increments, 0,1° vernier scale | 1° increments, 0,1° vernier scale |
| Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
| Transformer | Internal | Internal |
| Power supply | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, blue filter, spare fuse, empty insertion plate | Dust cover, power cord, Allen key, blue filter, spare fuse, empty insertion plate |
| Dimensions LxWxH | 400x220x452mm | 400x220x452mm |
| Weight Net | 10.4kg | 10.4kg |
How to adjust the microscope illumination
If you are wondering how to get good, clear and crisp images from your microscope, the key point is ensuring that your sample is correctly illuminated. In this video, we will show you in just a few steps, how to adjust the illumination of your microscope to get the best image out of your device.
How to do the parfocality adjustment on an upright microscope
Wondering what a microscope's parfocality is and how to do it when using an upright microscope? In this video, we will explain it and show you by following some easy steps.
How to avoid repairs in your microscope
Do you want to know how to keep your microscope in its best condition? In this video, we will give you some basic tricks to carry out; before, during, and after its use and thus avoid possible repairs.
How to mount the reticle into the eyepiece
Learn how easy it is to mount a reticle into the eyepiece of your Motic microscope.
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
