AE31E with FITC and TRITC Filter Fluorescence Bundle
$13,626
This fluorescence bundle comes with:

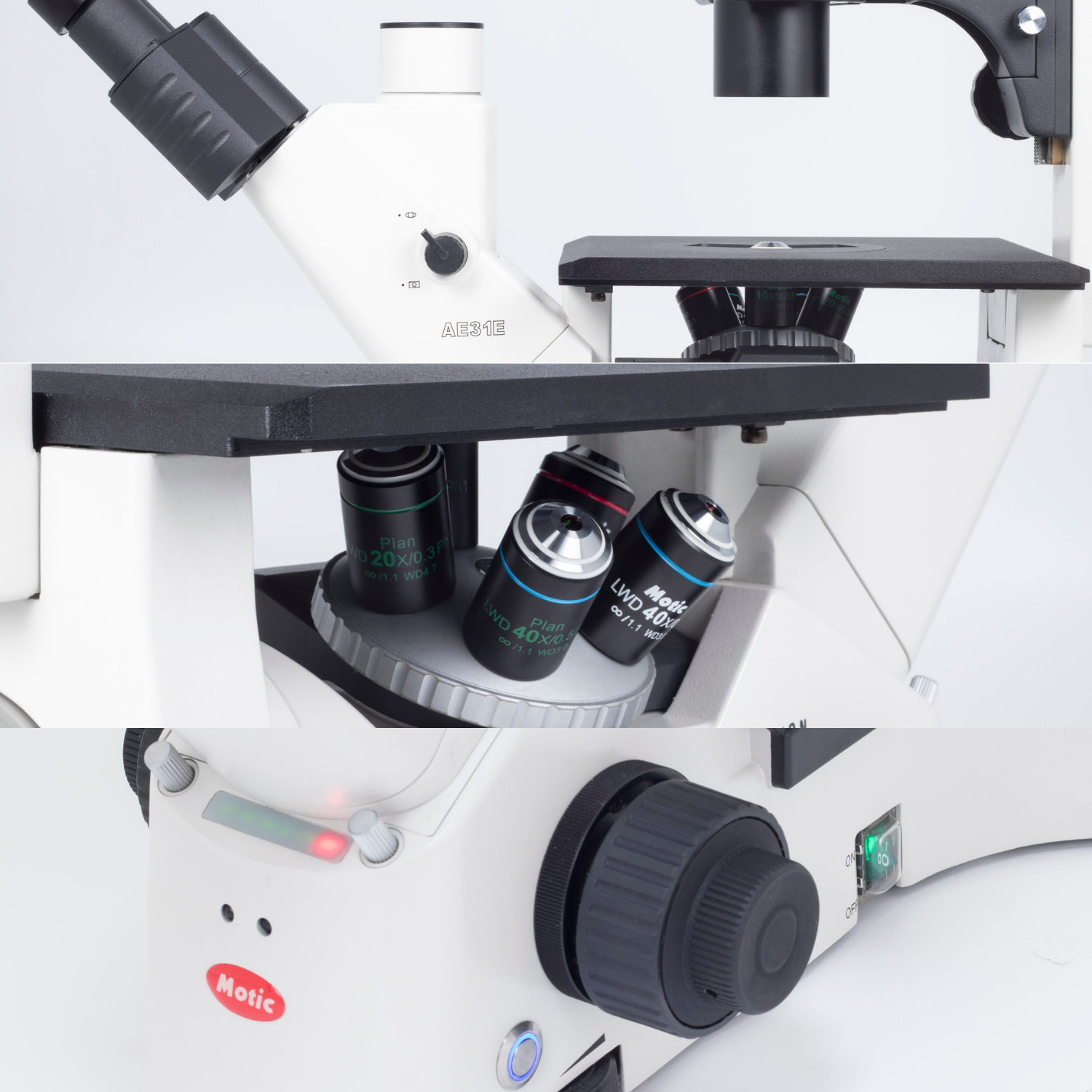

- AE31E LED Trinocular Inverted Microscope
- EGFP/FITC/Cy2/AlexaFluor 488 Filter
- TRITC/Cy3/TagRFP/AlexaFluor 546 Filter
- Complete EPI-Fluorescence Attachment for AE31 ELITE
- CCIS Plan Achromat Phase LWD PL Ph1 40X, N.A. 0.5 / W.D. 3.0

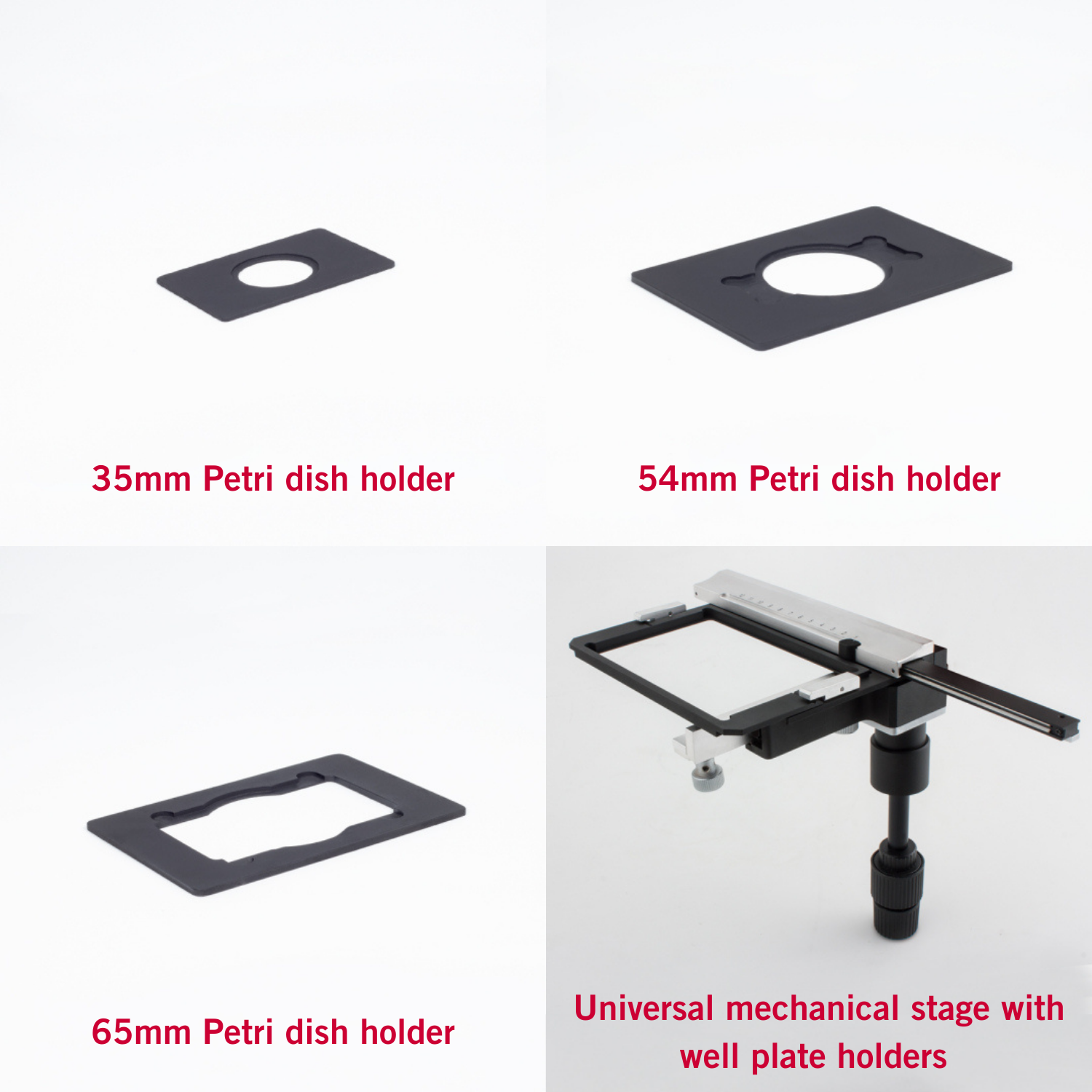

- Universal attachable mechanical stage with well plate holders (128 x 86 mm)
- 35mm, 54mm and 65mm Petri dish holder
This is the perfect platform for all kind of routine microbiology applications in clinical and pharmaceutical laboratories.
- Specifications
- Downloads
- Videos
- Warranty
- Return Policy
- Reviews
| Model | AE31E Trinocular |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm) |
| Diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield WF10X/22mm with diopter adjustment |
| Fine focus precision | 2μm |
| Fluorescence | Optional HBO |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 10mm |
| Free working distance | Working distance without condenser 231mm |
| Illumination features | Auto-OFF and Light Memory function |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W |
| Inclination | 45 ° inclined |
| Interpupillary distance | 48-75mm |
| Nosepiece | Left side facing quintuple |
| Objective classification | CCIS® Plan Achromatic, DIC |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 12.6mm), PH 10X/0.25 (WD 4.1mm), LWD PH 20X/0.30 (WD 4.7mm), [Optional] LWD PH 40X/0.50 (WD 3.0mm) |
| Phase contrast | Slider |
| Stage | Plain stage with metal and glass stage inserts |
| Stage size | 200x239mm |
| Stand type | Inverted |
| Standard contrast technique | Brightfield, phase contrast |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control |
| Transformer | Internal |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse |
| Dimensions LxWxH | 556x200x529mm |
| Net weight | 11.7kg |
Contrast Methods - Phase Contrast on AE2000 & AE31E
Discover how to perform the Phase contrast method on our AE2000 & AE31E inverted microscopes.
Contrast Methods - HBO lamphouse set-up and alignment for BA410E & AE31E
Learn how to set-up and align the Fluorescence HBO lamphouse for the BA410E & AE31E upright and inverted microscopes.
Contrast Methods - How to setup the fluorescence attachment on the AE31E
Discover how to setup the fluorescence attachment in our AE31E inverted microscope.
Motic Lumos Fluorescence LED illuminator - Making visible the invisible
Discover our most advanced fluorescence LED illuminator, which integrates seamlessly with our PA53 BIO series, BA410E, and AE31E microscopes to produce dazzling images of fluorochrome-labelled specimens.
How to adjust the tension of the focusing system (ring). E.g. AE Series
Learn how easy it is to adjust the tension of the focusing system of your Motic microscope.
How to avoid repairs in your microscope
Do you want to know how to keep your microscope in its best condition? In this video, we will give you some basic tricks to carry out; before, during, and after its use and thus avoid possible repairs.
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
